2026 AUTEL MaxiSys Ultra S2 Advanced Diagnostic Tablet with Motor Truspeed (US IP Only)

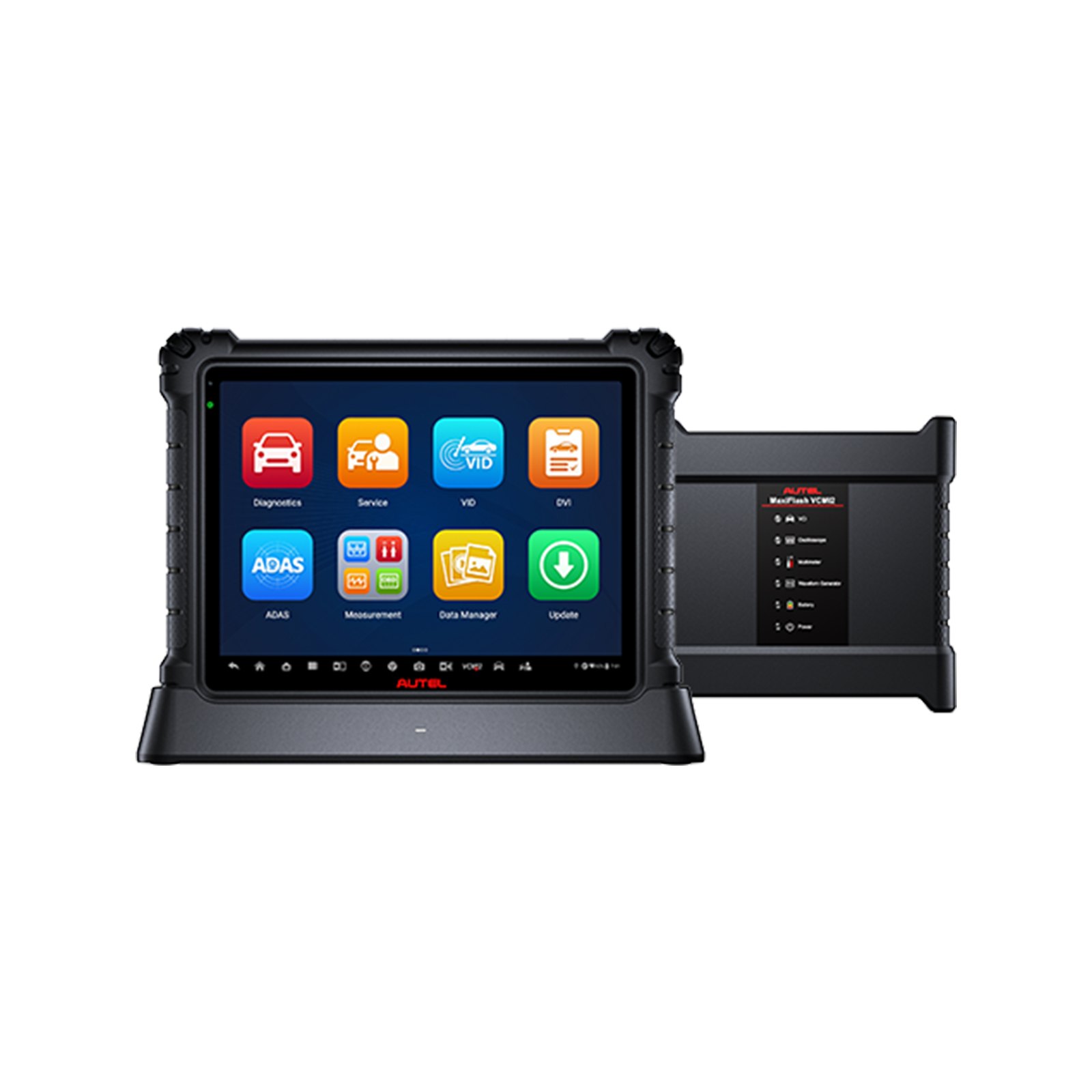

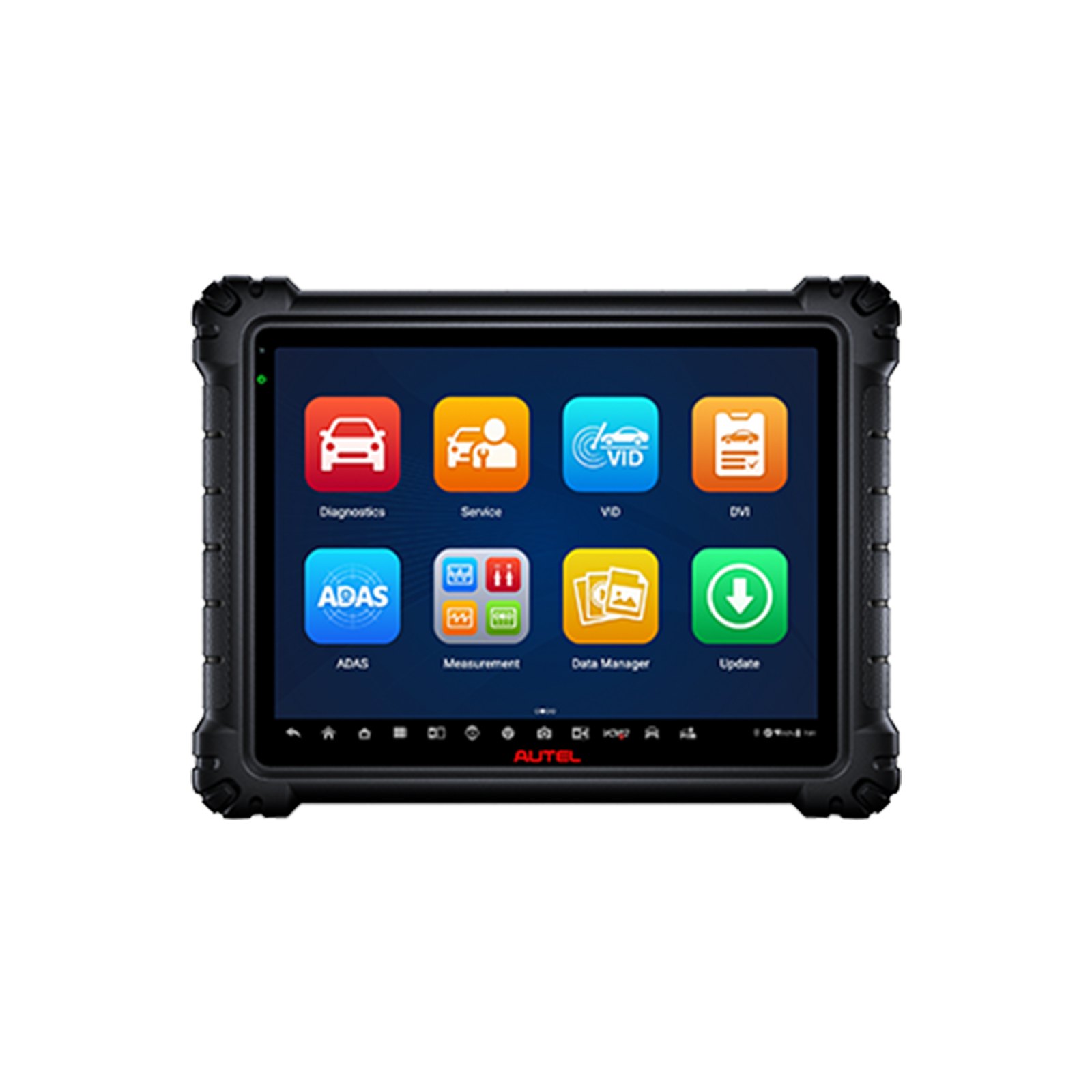

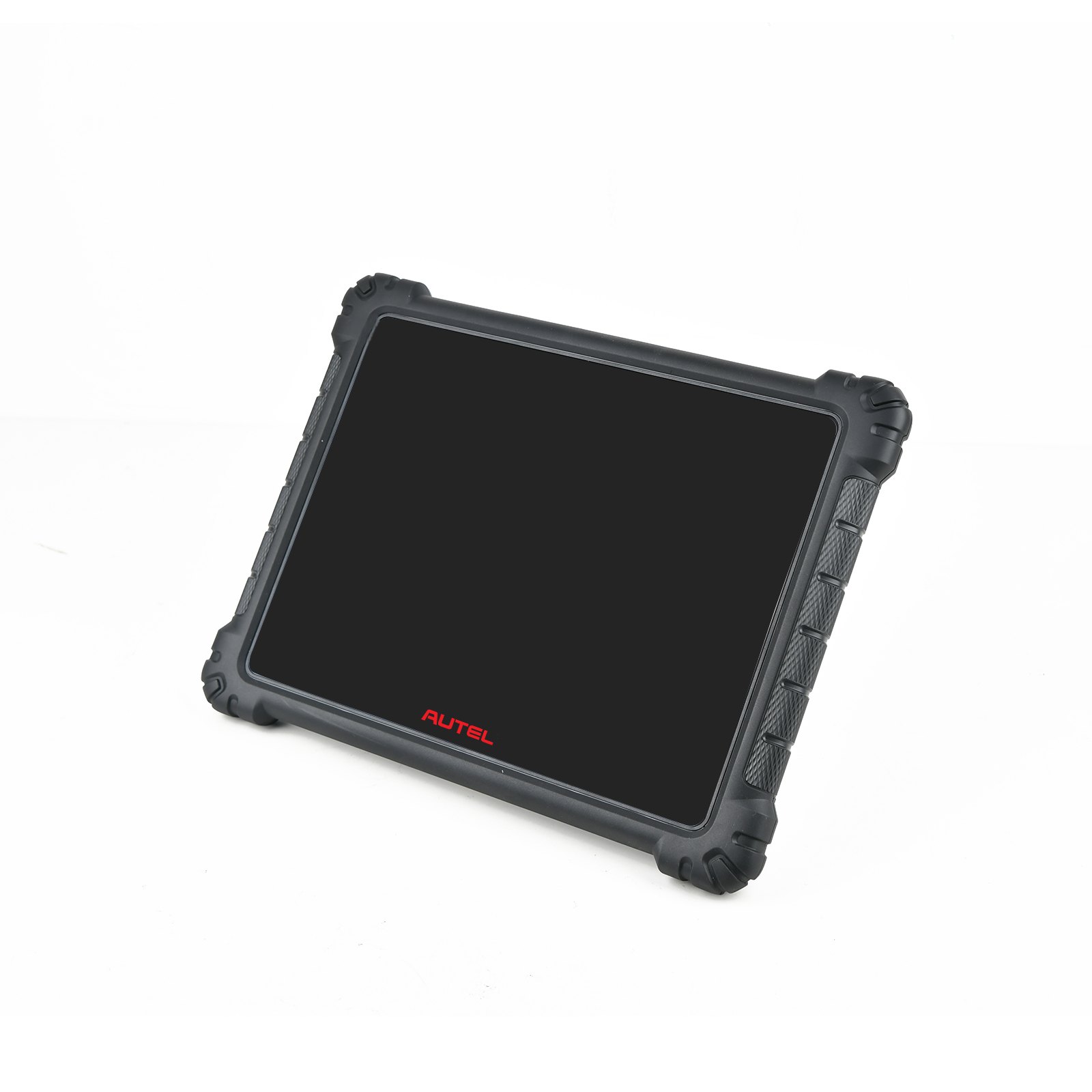

The 2026 AUTEL MaxiSys Ultra S2 is an advanced diagnostic tablet with a 13.7-inch Android touchscreen, 512GB of storage, and a 6-in-1 vehicle communication and measurement device. It covers US, Asian, and European vehicles from 1996 and newer with active tests, special functions, coding, and includes one year of Motor Truspeed repair data and free Autel software product works only with a US IP address. Part number: XN-SP598-US.

Versions

Two versions are available at different prices: Ultra EV and Ultra S2 shown here.

Diagnostics

• Data-driven diagnostics with enhanced PID analysis, multi-PID graphing, value recording and comparison across systems, and process diagrams with live data at critical points
• Enhanced split-screen diagnostics with multiple applications at once
• Topology 3.0: OE-style real-time color-coded map of all ECU modules across CAN, LIN, FlexRay, and more, with online and offline status, fault detection, and active module pinging for signal quality
• New live data visualization strategies
• 4-channel oscilloscope launched directly from live data analysis
• Multi-point digital vehicle inspection with AI image analysis for dents and scratches
• Streamlined VCMI with standalone Remote Expert capability
• MAX hands-free virtual assistant: system scans, maintenance tasks, and active tests by voice command

VCMI2 6-in-1 device

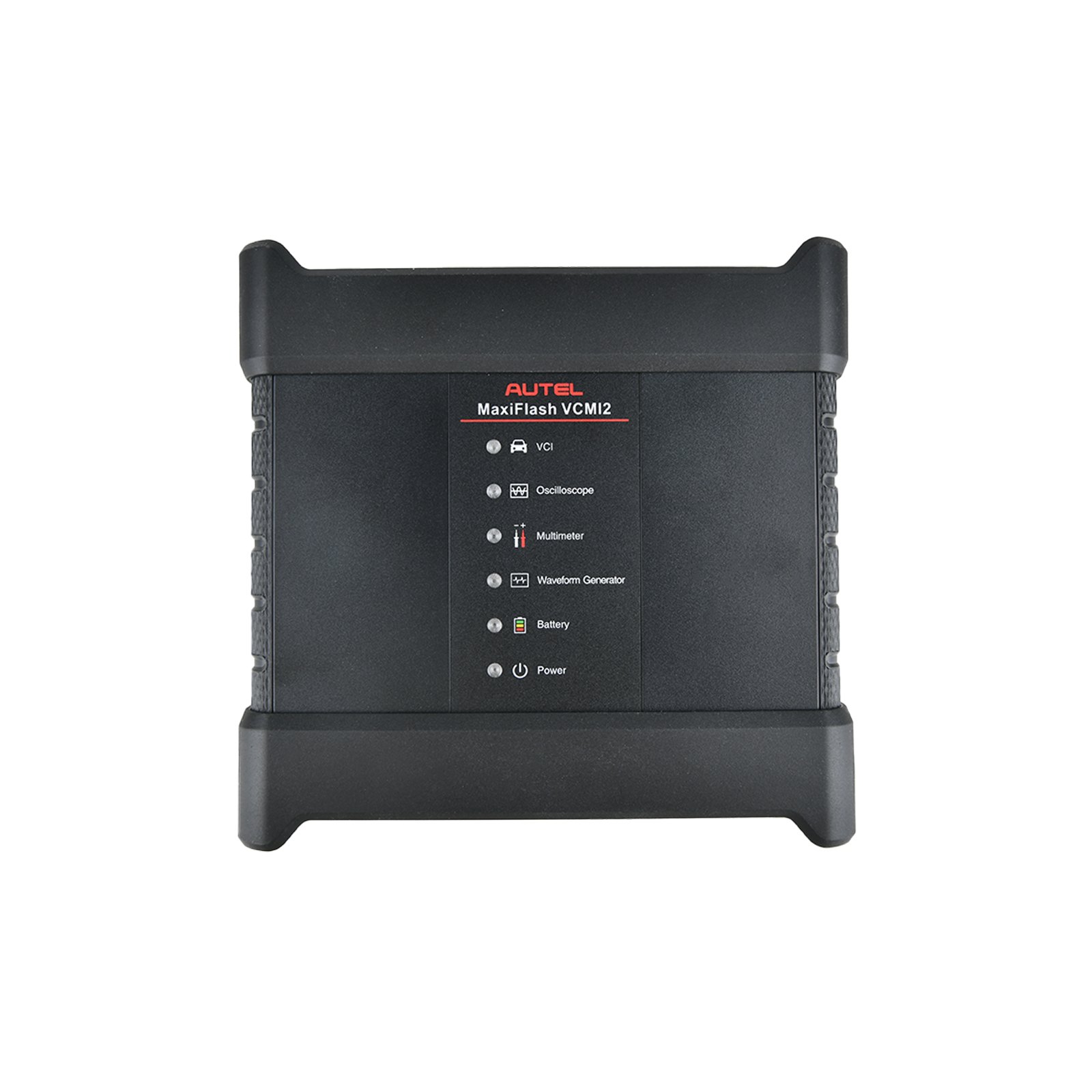

The MaxiFlash VCMI2 combines a 4-channel oscilloscope, multimeter, waveform generator, CAN bus tester, J2534 pass-thru programmer, and Remote Expert support in one device.

EV diagnostics

AC and DC charging analysis, high-voltage component inspection, thermal system evaluation, and parasitic current detection for combustion, hybrid, and fully electric platforms.

Services and coding

• 48+ service functions including oil reset, EPB, regeneration, BMS, SAS calibration, and EV-specific services
• ECU coding and programming with OEM-level precision, hidden feature activation, retrofits, safety checks, and guided procedures

Ultra S2 over Ultra

• Processor: Qualcomm 8-core over Samsung 8-core
• Memory: 12GB RAM and 512GB storage over 8GB and 256GB
• Android 13 over Android 11
• Display: 13.7 inch over 12.7 inch. Resolution 2176 by 1600 over 2732 by 2048
• USB: Type-C over Mini device port. HDMI 2.0. 4 microphones. DC fast charging, which the Ultra lacks
• Lower computer: MaxiFlash VCMI 2 over VCMI
• Data stream 3.0 multi-system over 2.0 single system

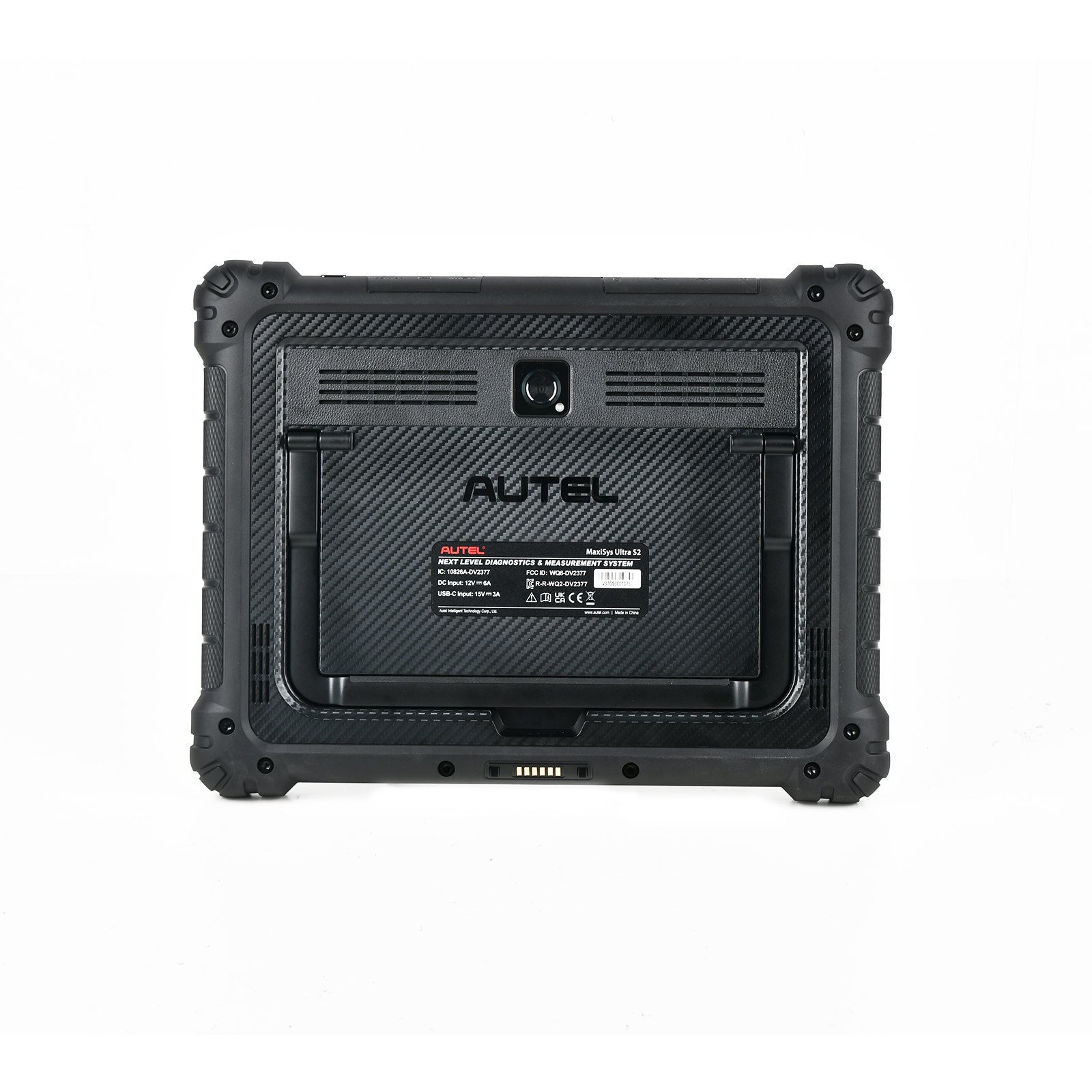

• Camera: front and rear 16MP on both. Charging dock, GPS, light sensor, and speakers on both

Terms

• Motor Truspeed: send the device serial number to open the function. Works in the US and Canada only
• One year of Motor Truspeed access and Autel software updates included
