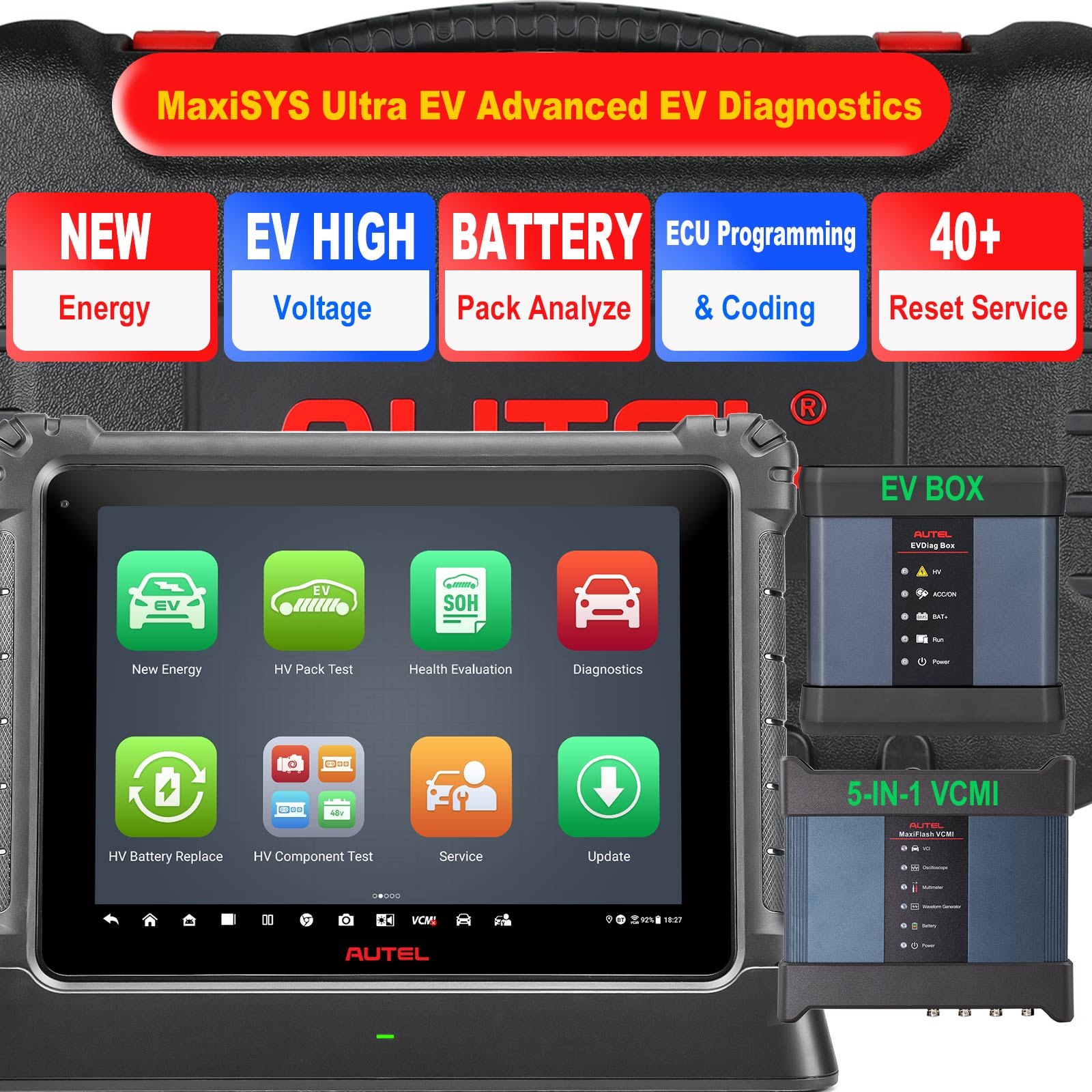

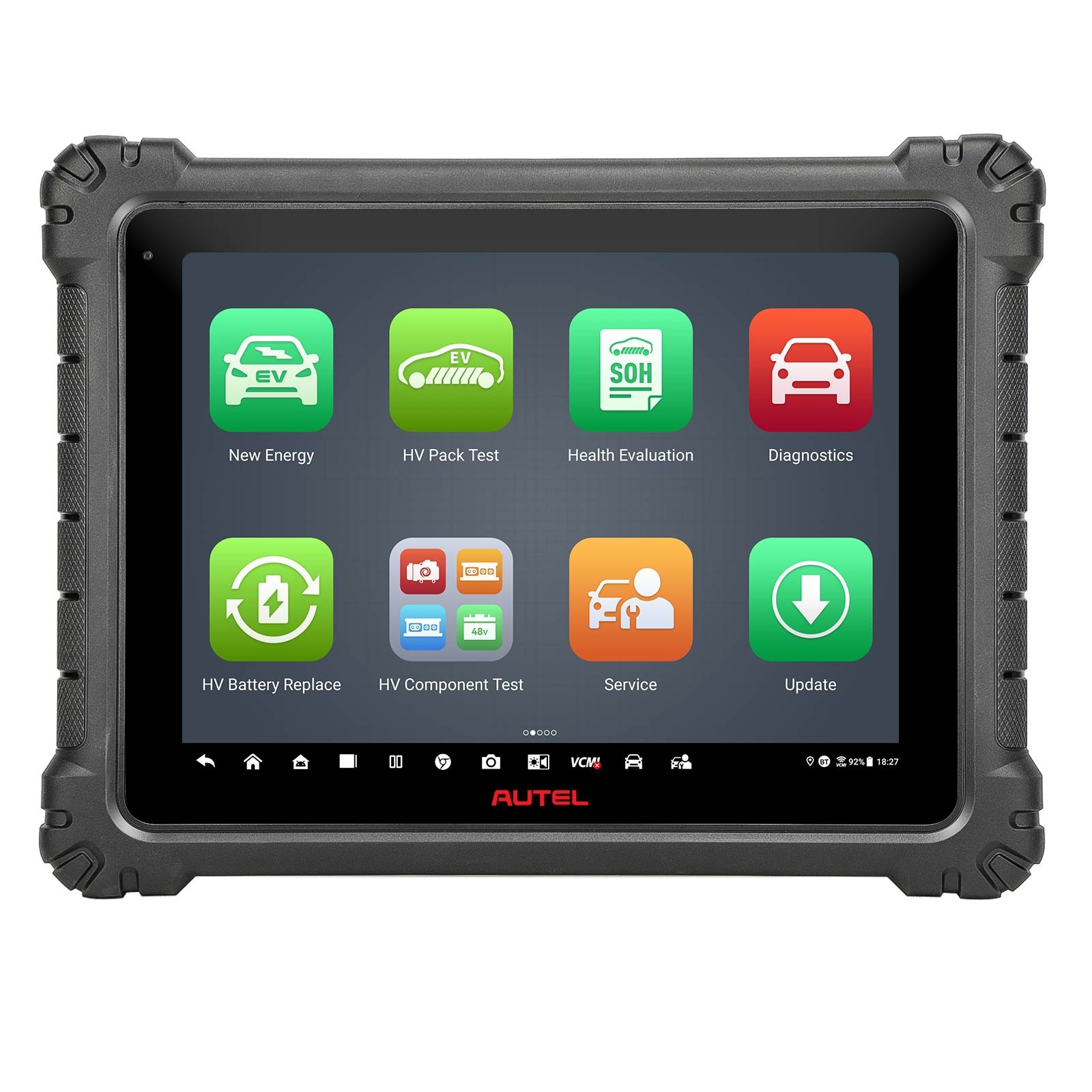

2026 AUTEL MaxiSys Ultra EV Advanced EV Diagnostics with MaxiFlash VCMI

The 2026 AUTEL MaxiSys Ultra EV brings advanced diagnostics to electric, hybrid, gas, and diesel vehicles. Battery pack analysis runs through OBD or directly with the included specialty cables and jumpers, with on-screen graphics and connection guidance for safe testing. Part number: XN-SP585.

Versions

Two versions are available at different prices: Ultra EV shown here and Ultra S2.

Features

• Advanced diagnostics for US, European, and Asian electric, gas, diesel, and hybrid vehicles
• Rapid high-voltage system analysis with code reading, erasing, and live data
• High-voltage block diagrams, component and socket diagrams, and step-by-step disassembly instructions
• State of Charge and State of Health analysis for true battery condition
• Interactive data logging sessions with direct Autel support contact for troubleshooting
• Multitasking workshop management for data files, customer info, and vehicle records
• Cloud data manager for customer and vehicle records, scanner data, and technician notes
• Online ECU programming and coding, 40+ services

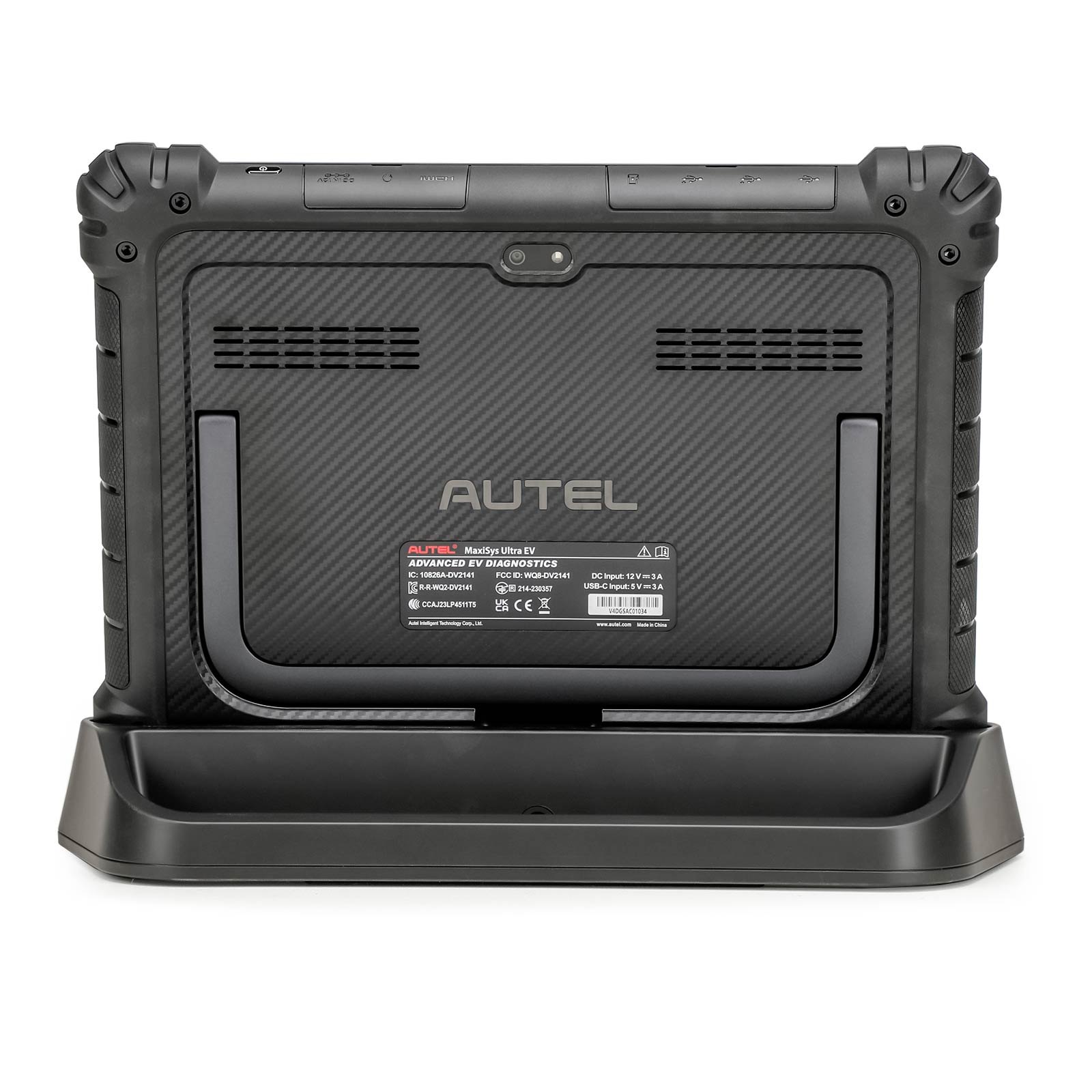

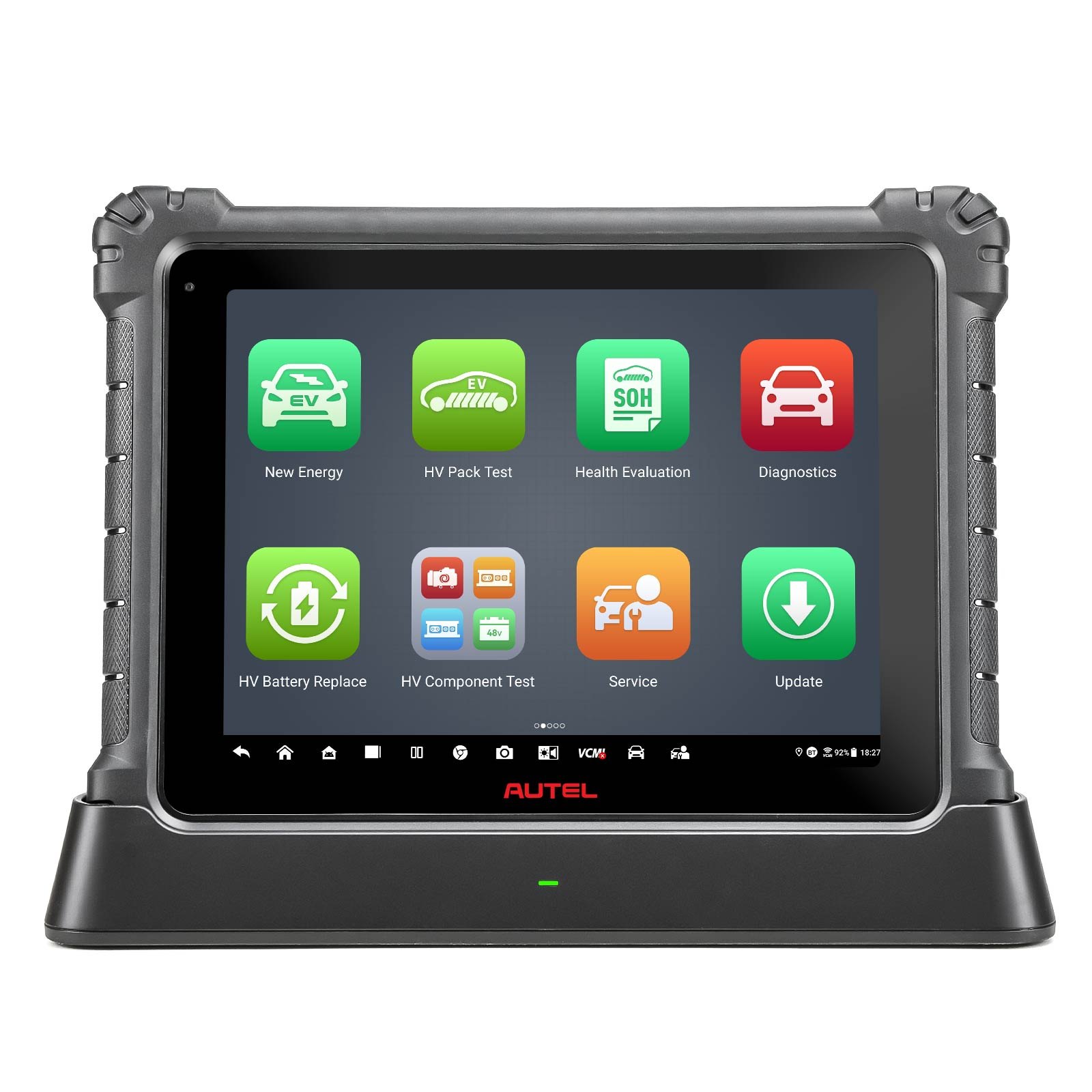

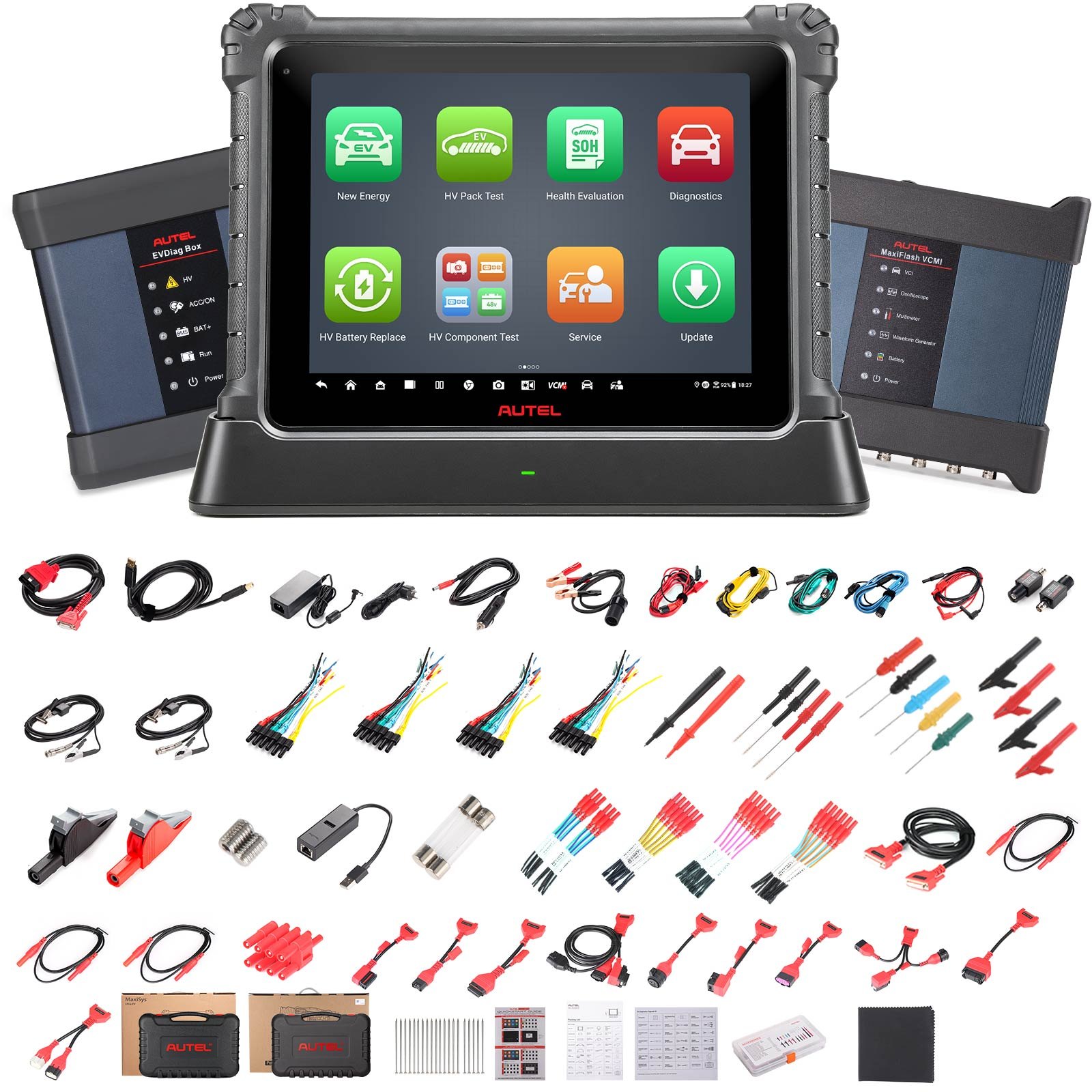

• 12.9-inch touchscreen tablet with MaxiFlash VCMI 5-in-1 measurement device, Bluetooth vehicle interface, J2534 pass-thru programming, and dedicated EVDiag box

MS909EV over Ultra EV

• Connection: Bluetooth MaxiFlash VCI over Bluetooth MaxiFlash VCMI
• Screen: 9.7 inch over 12.9 inch
• Battery: 15,000mAh over 18,000mAh
• Processor: 2.2GHz plus 1.8GHz octa-core on both
• Memory: 128GB SSD and 4GB RAM over 256GB SSD and 4GB RAM
• Camera: 16MP rear and 16MP front over 16MP rear and 5MP front
• Docking station: missing over included
• EVDiag box: included on both
• Operating system: Android 10.0 over Android 7.0
• Detection: Auto-VIN and auto-scan on both. Scan VIN and plate scan on both
• Secure gateway: authorized FCA access over AutoAuth account on both
• Plate reader: select vehicles on both
• Coverage: US, European, and Asian electric, gas, diesel, and hybrid vehicles on both
• OBDII test modes: all 10 on both

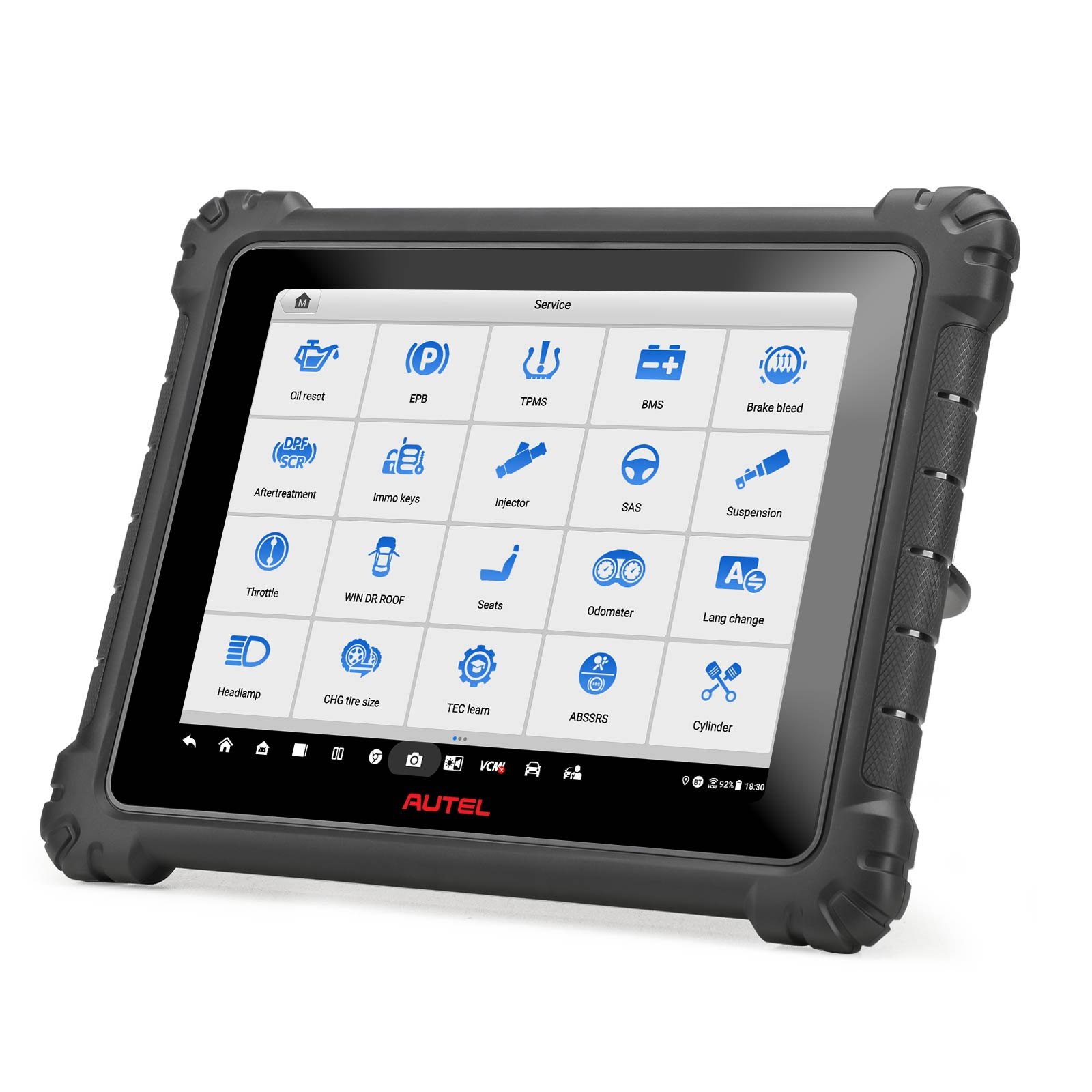

• Service resets: 36 features on both
• Diesel PM reset for light and medium duty vehicles on both
• System diagnostics across all modules on both
• High-voltage diagnostics with block diagrams on both
• Battery pack SOC and SOH analysis on both
• Bidirectional component activations on both
• Coding and adaptations on both
• ADAS: upgrade and frame kit purchase required on both
• Cloud: remote programming and report storage on both
• Topology: color-coded system status screen on supported vehicles on both
• Oscilloscope: missing over VCMI 5-in-one with VCI multimeter, waveform generator, and CAN bus tester

EVDiag box and adapters

The EV diagnostics upgrade kit holds the EVDiag box and adapters with a carrying case for battery pack analysis on specific electric vehicles. The box fits MaxiSys Ultra, MaxiSys Ultra ADAS, MaxiSys MS919, and MaxiSys MS909 tablets through MaxiFlash VCI or VCMI. Kit contents: EVDiag box, adapters for BMW and VW, breakout leads, and carrying case. Existing MS909, MS919EV, and MaxiSys Ultra owners upgrade by entering the EV box serial number in the tablet portal under the EV diagnostics upgrade kit.

High-voltage diagnostics

Read and clear codes and show SOC, SOH, voltage, and pack status in one click. Block diagrams, parts diagrams, plug-in diagrams, and disassembly guides support the work. Offline battery package diagnostics support each battery installation.

VCMI 5-in-1

• VCI connection over WiFi, Bluetooth, and USB. Dual wireless mode runs faster and more stable with over 50m range and over 30 percent faster diagnosis
• Oscilloscope with large bandwidth, high sampling rate, deep storage, and preset cases, plus zoom, playback, and advanced triggering
• Waveform generator with DC voltage, square wave, square wave X plus Y, triangle wave, actuator drive, and arbitrary waveform modes for sensor and ECU signal simulation
• Multimeter for voltage, current, resistance, frequency, diode, duty cycle, pulse width, and connectivity
• CAN bus check through the OBD interface with indicator light signal confirmation

Topology mapping

The CAN bus tree lists all control units of the test vehicle in color: system counts, scanned systems, scan results, per-module DTC presence and counts, communication structure, direct fault code display with system entry, and color-coded module status.
