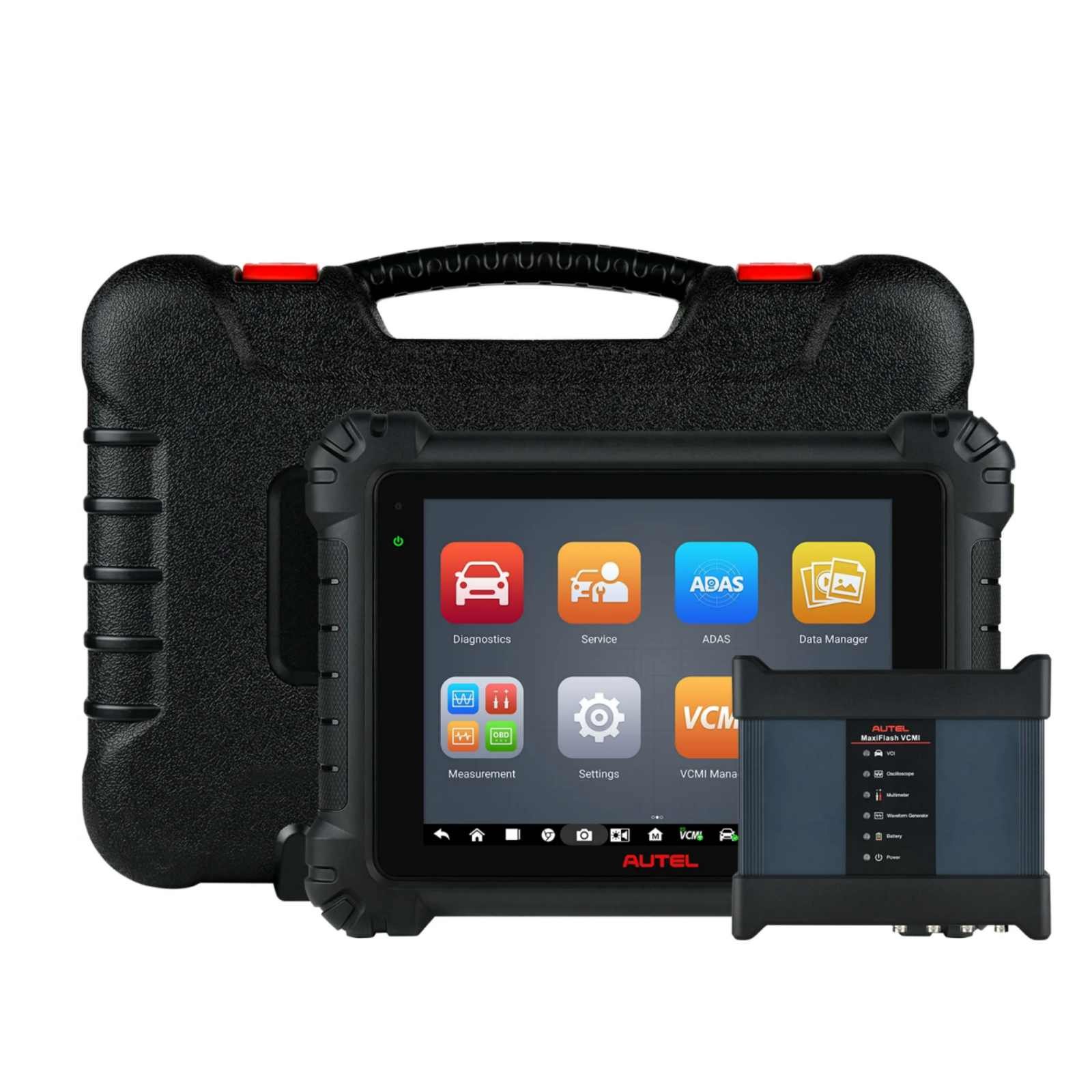

2026 Autel MaxiSys MS919 Diagnostic Scanner with 5-in-1 VCMI, ECU Programming, and Topology

The 2026 Autel MaxiSys MS919 Diagnostic Scanner runs a 9.7-inch touchscreen tablet on Android 7.0 with an octa-core processor (2.3GHz quad plus 1.7GHz quad) and 128GB of memory, with split-screen multi-application navigation.

Highlights

• Motor TruSpeed repair with OEM-sourced repair and service IP only, 650 USD per year
• Topology mapping 2.0 with all-system distribution diagrams and DTC counts in color

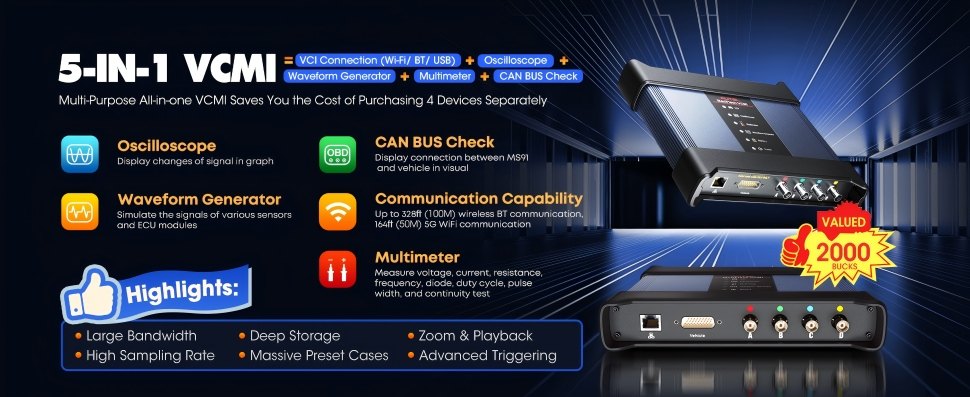

• Advanced 5-in-1 VCMI valued at 2000 USD in functions: VCI, oscilloscope, multimeter, waveform generator, and CAN bus check
• ECU programming and coding: reprogram new ECU modules on BMW and Benz after replacement, program ECUs, and match preprogrammed ECUs to onboard systems
• 36+ service functions
• OE-level all-system diagnostics
• Active tests and bidirectional control
• 15000+ vehicle compatibility across 80+ American, Asian, and European makes and 140+ brands with CAN FD and DoIP protocols
• VAG guided functions, power balance, component matching, and online account login
• Auto Scan 2.0 at 3 times faster scanning speed

Remote export

Cloud connection to pre-qualified remote experts for module programming work. Send the 12-digit serial number to add authorization.

EV upgrade

Upgradeable to the MS919EV with an extra EVDiag Box purchase for new energy vehicle diagnostics and EV battery pack analysis.

Functions

• OE-level all-system diagnostics on 95 percent of post-2000 vehicles and 85 percent of post-2019 vehicles: read and clear codes, 36+ services, live data, active tests, and ECU info
• Advanced 5-in-1 VCMI with faster stable transmission and over 80 percent faster diagnosis speed. Wireless range 164 feet and 50m
• J2534 programmer for new replacement ECU modules with existing software and firmware, and for BMW and Benz software-controlled drivability and emission issues. Send the VIN of the BMW or Benz to check compatibility first. No scanner programs ECUs of other brands
• Bidirectional control by ECU data reading or actuator commands. Active tests are not universal. Send the VIN to check compatibility first

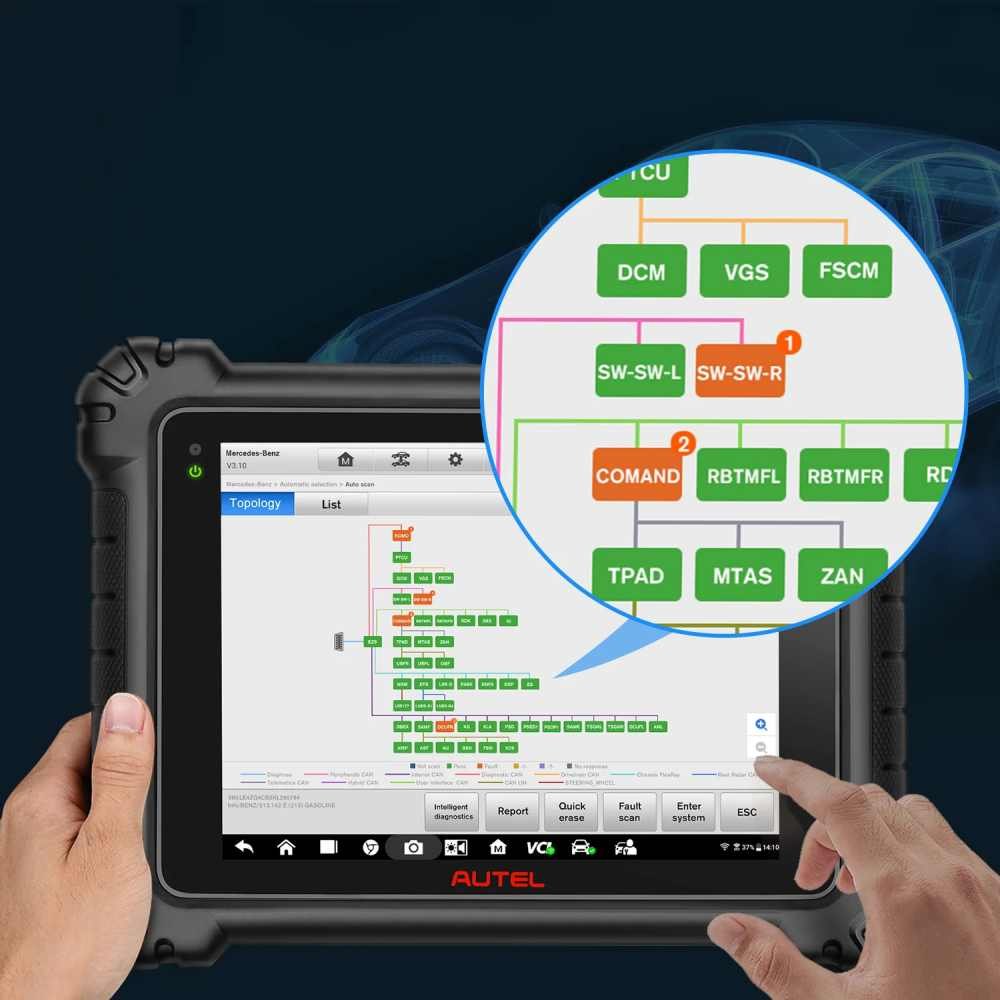

• Topology CAN bus tree with color-coded modules. Supported: BMW, Volkswagen, Audi, GM, Ford, Chrysler, Nissan, Honda and Acura, Toyota and Lexus, Jaguar and Land Rover, Benz, Hyundai, Kia, Volvo, and PSA. Send the VIN to check before purchase
• VCMI oscilloscope: 20MHz bandwidth, up to 80MS/s sampling, preset guided tests

VCMI specifications

• Operating system: Android 7.0
• Processor: Samsung Exynos8895V octa-core (2.3GHz quad-core Mongoose plus 1.7GHz quad-core A53)
• Memory: 4GB RAM and 128GB memory
• Display: 9.7 inch TFT-LCD at 1536 by 2048 with capacitive touchscreen
• Connectivity: dual WiFi 802.11 a/b/g/n/ac 2x2 MIMO, Bluetooth v2.1 plus EDR, GPS, USB 2.0 with two USB host Type A and one USB mini device, HDMI 2.0, SD card up to 256GB
• Camera: rear 16MP with autofocus and flashlight, front 5.0MP
• Sensors: gravity accelerometer and ambient light sensor
• Audio: microphone, dual speakers, 3-band 3.5mm stereo headset jack
• Power: 15000mAh 3.8V lithium-polymer battery
• Charging: 12V AC and DC power supply between 0 and 45 degrees C
• Input voltage: 12V and 3A adapter
• Operating temperature: 0 to 50 degrees C (32 to 122 F)
• Storage temperature: -20 to 60 degrees C (-4 to 140 F)
• Dimensions: 304.4mm (11.98 inch) by 227.8mm (8.97 inch) by 42.5mm (1.67 inch)
• Weight: 1.66kg (3.66lb)
• Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 single wire CAN (GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART echo byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD bus), Ford UBP, Nissan DDL UART with clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

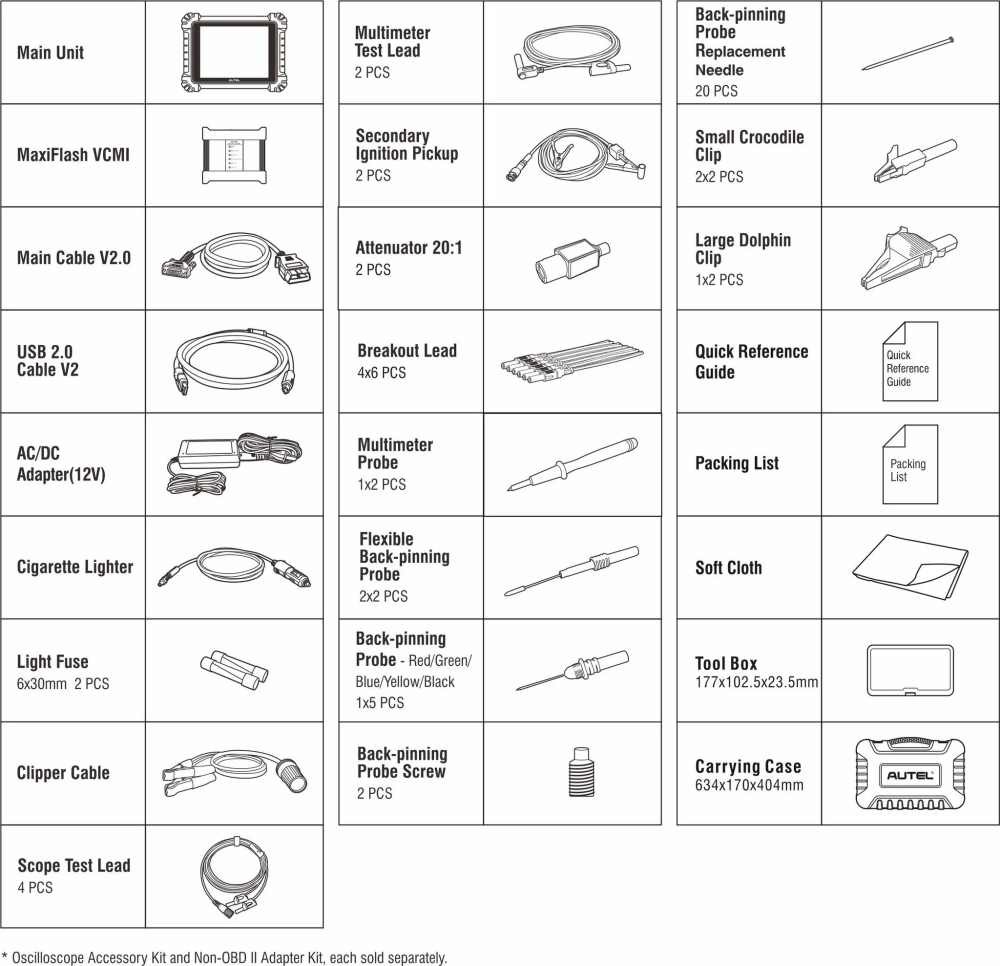

What is in the box

1 set Autel Maxisys MS919.
