2026 Autel MaxiSys MS909 S2 Diagnostics and Analysis System with 45+ Services

The 2026 Autel MaxiSys MS909 S2 is an 11-inch touchscreen Android diagnostic tablet with near OEM-level diagnostics and service capability.

Hardware

• 11-inch anti-glare screen
• 256GB storage
• 2.7G 8-core processor
• Android 13 operating system
• WiFi 6 for high-speed low-latency data

Software

• US, Asian, and European vehicle and system coverage
• Bidirectional tests, hidden functions, adaptations, and coding
• Pre-scan and post-scan reporting
• One-tap access to 45+ maintenance and reset service functions
• Security gateway access for Mercedes-Benz, Nissan, VW and Audi, and Stellantis. AutoAuth required with tokens or subscription purchased on the tool
• Late-model protocols, ADAS calibration capability, and remote expert readiness

PID analysis

• Enhanced graphing across multiple parameters for PID relationships and anomalies
• Record and compare value changes across multiple systems
• Multi-PID selection for related parameters. Built for engine fault, performance, and emissions troubleshooting
• Process diagrams with live data at critical points
• Split-screen diagnostics with multiple applications

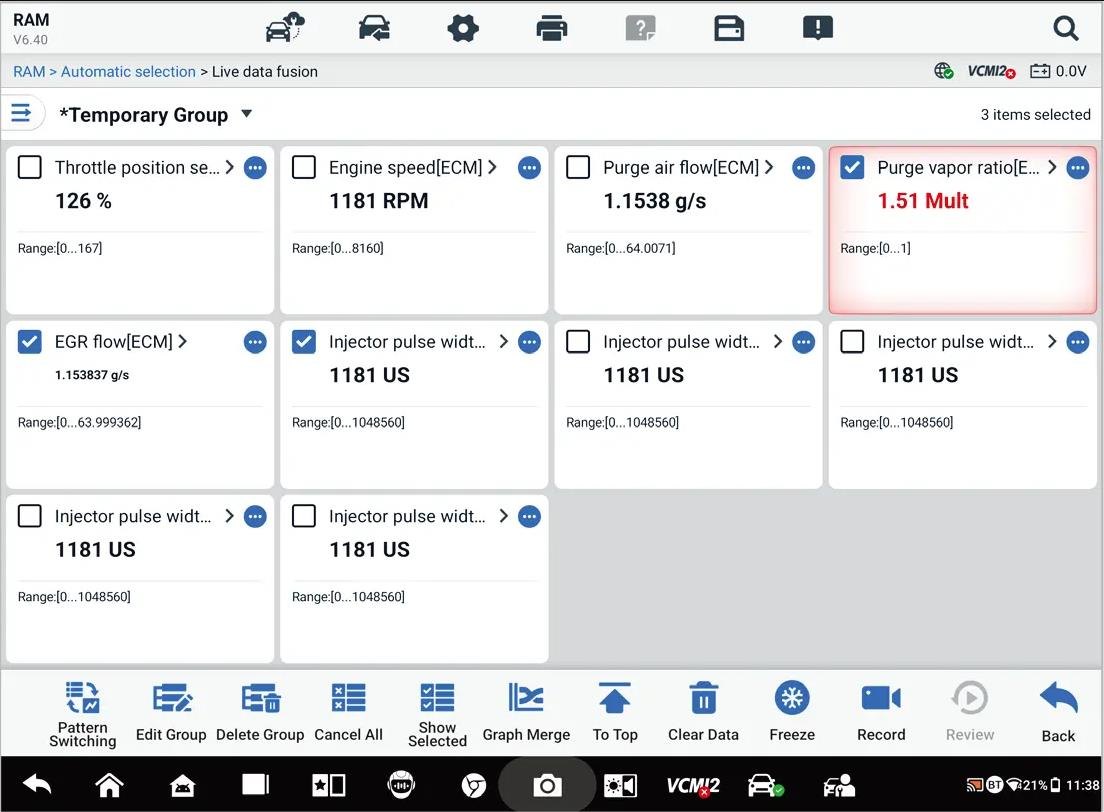

• Live data fusion: record and compare across systems
• Parameter grouping for simultaneous related analysis
• Reference sampling: record, store, and review PIDs with min, max, and average flags for pre- and post-repair comparison

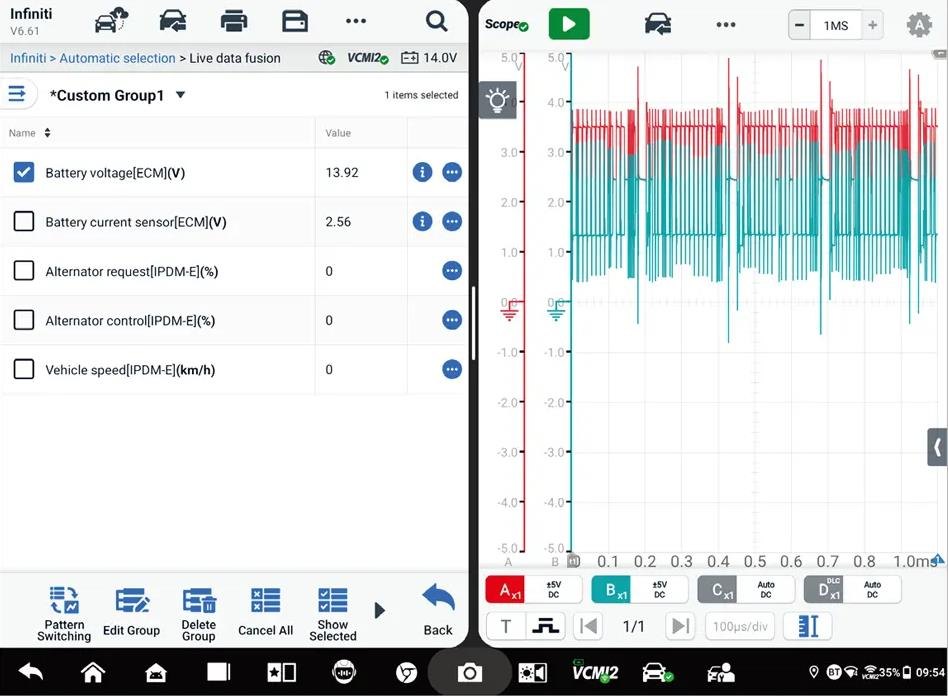

• Real-time split-screen analysis with oscilloscope access from the live data screen on the MS919 S2

MAX assistant

Hands-free virtual assistant MAX navigates the interface and runs tasks and functions by voice command: system scans, maintenance tasks, and active tests.

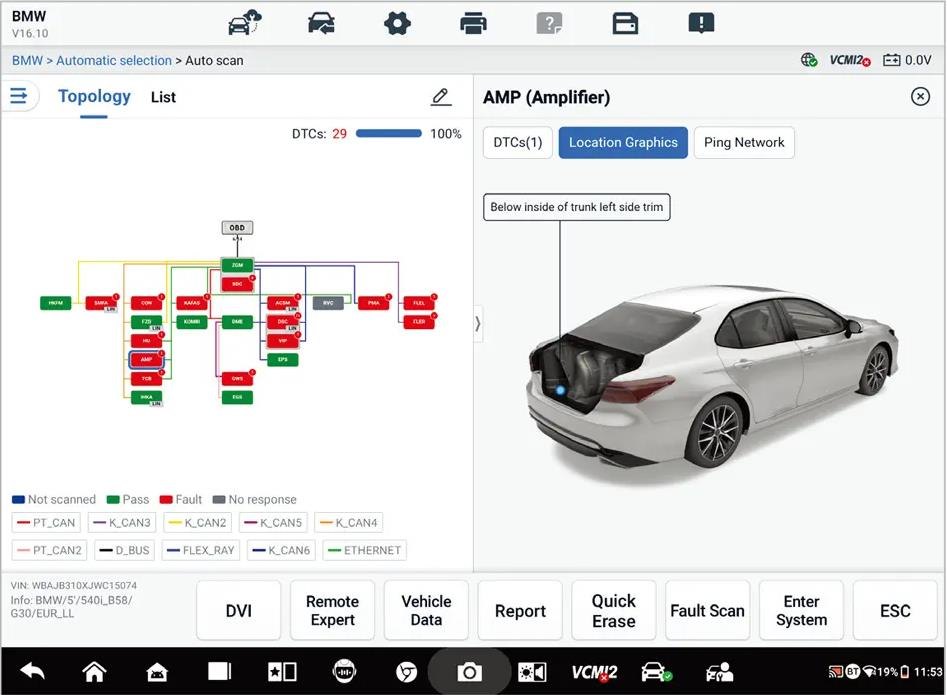

Topology 3.0

• OE-style analysis of multi-speed communication protocol networks
• Active module and network analysis with direct ECU pinging for signal quality and network integrity
• Color-coded module status at a glance

Oscilloscope

• Launched directly from live data analysis
• EV tests: AC and DC charging, high-voltage components, interlock loop signal, power-on control, resolver sensor, and thermal management
• Parasitic current draw and swing tests added

Digital vehicle inspection

Multi-point DVI for inspections and documentation.

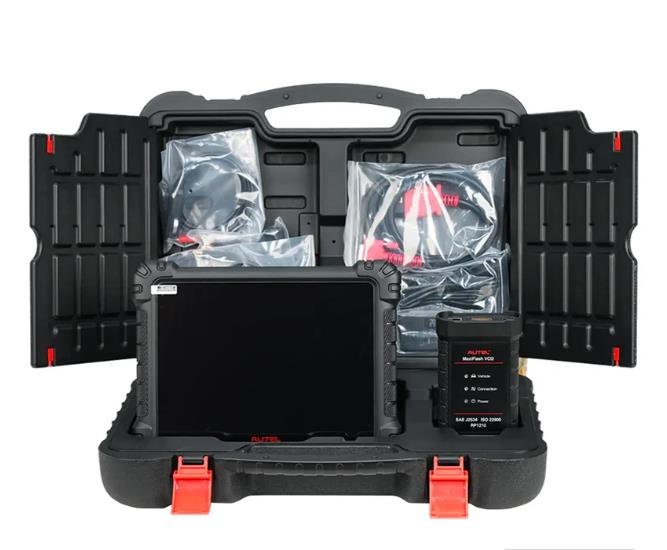

What is in the box

1 set Autel Maxisys MS909 S2.
