2026 Autel MaxiCOM Ultra Lite S Diagnostic Tool with ECU Programming, Topology, and Guided Functions

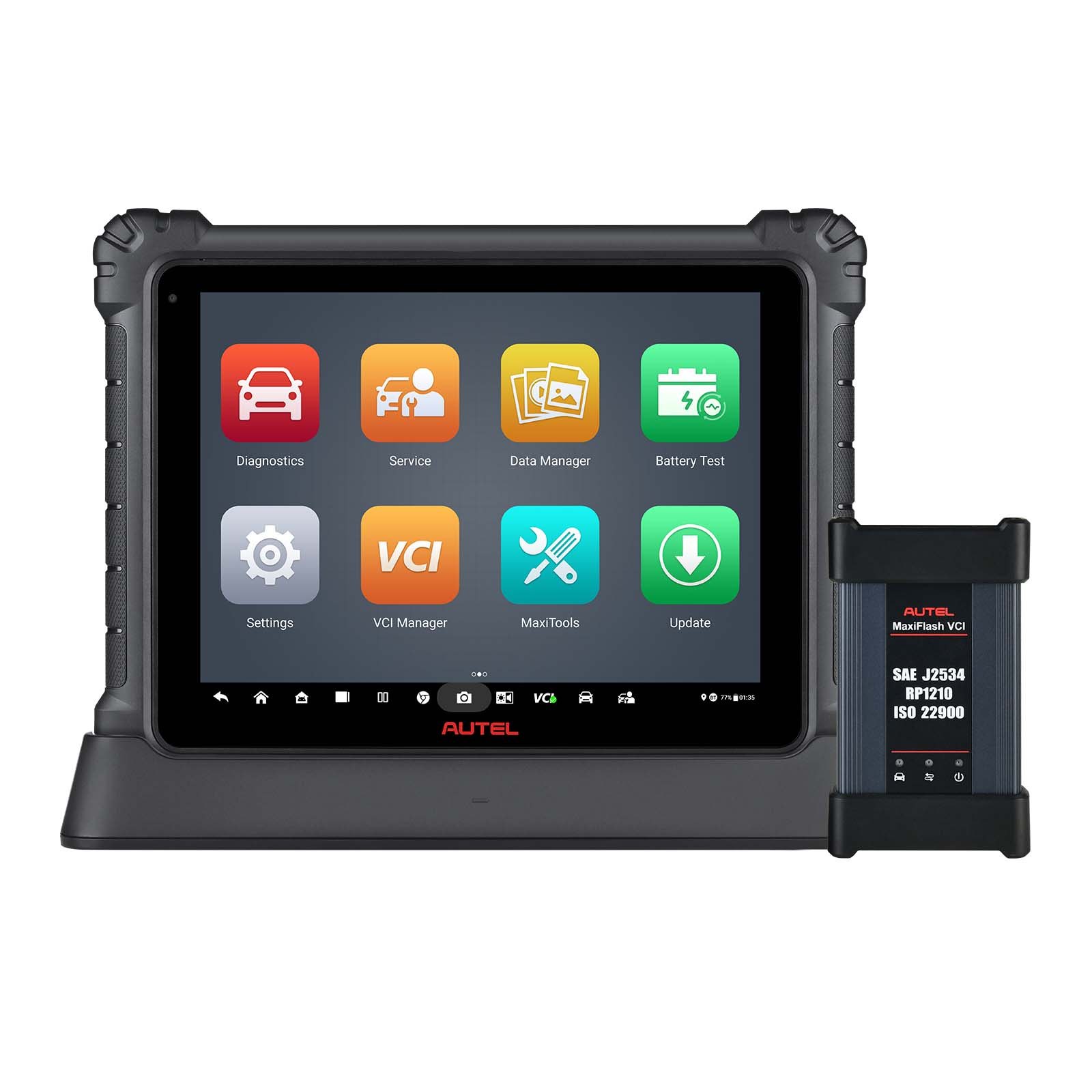

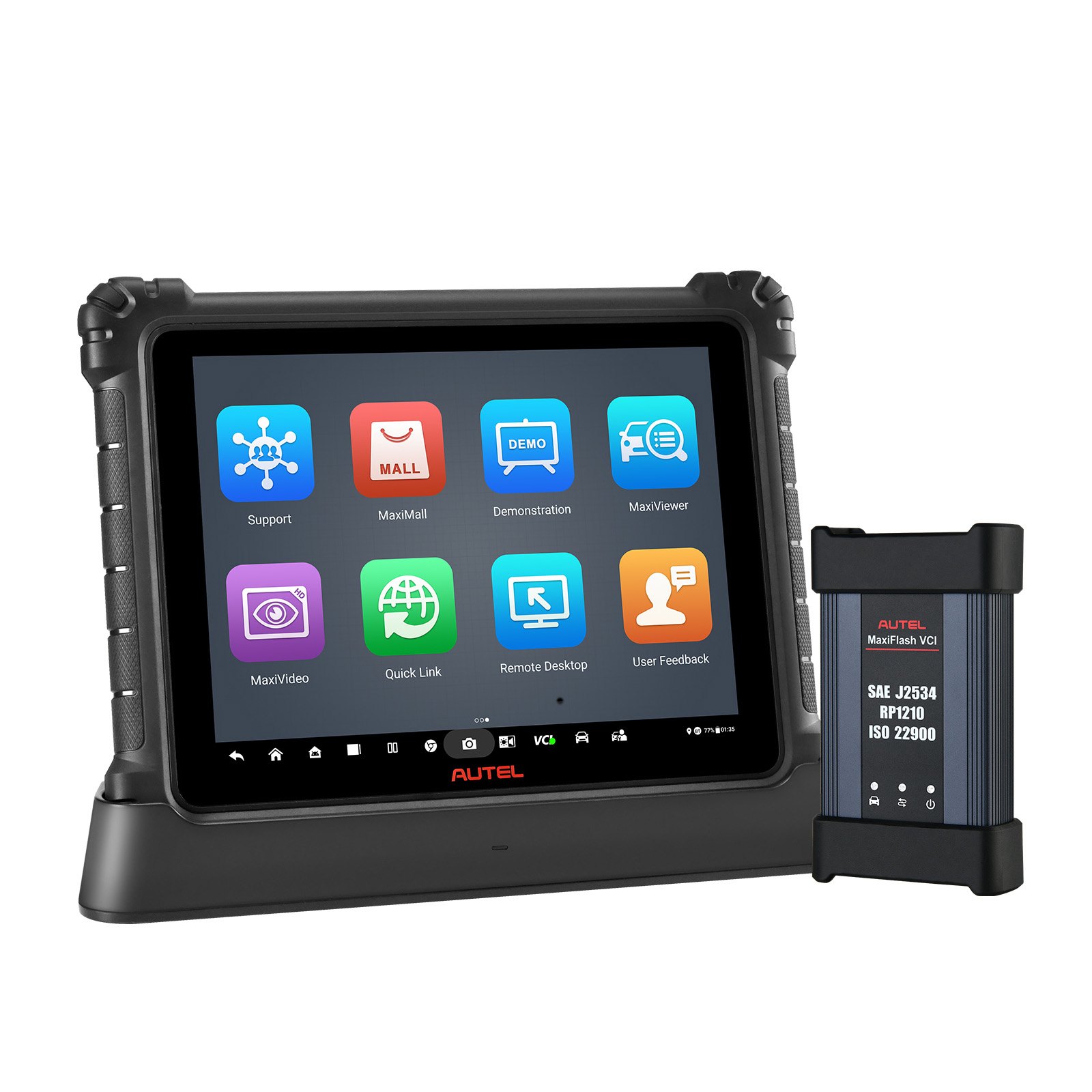

The 2026 Autel MaxiCOM Ultra Lite S Diagnostic Tool runs a 12.9-inch touchscreen tablet on Android 7.0 with an octa-core processor (2.3GHz quad plus 1.7GHz quad) and 256GB of memory.

Versions

Six versions are available at different prices: Ultra one year update service, Autel MaxiCOM Ultra Lite S shown here, Autel Maxisys Ultra, Ultra with MSOBD2KIT or BT506, Ultra with MSOAK, and Autel Maxisys Ultra plus EV upgrade kit.

Highlights

• Global version with no blocking
• Languages: English, German, Spanish, French, Polish, Italian, Japanese, Korean, Dutch, Portuguese, Swedish, and Russian

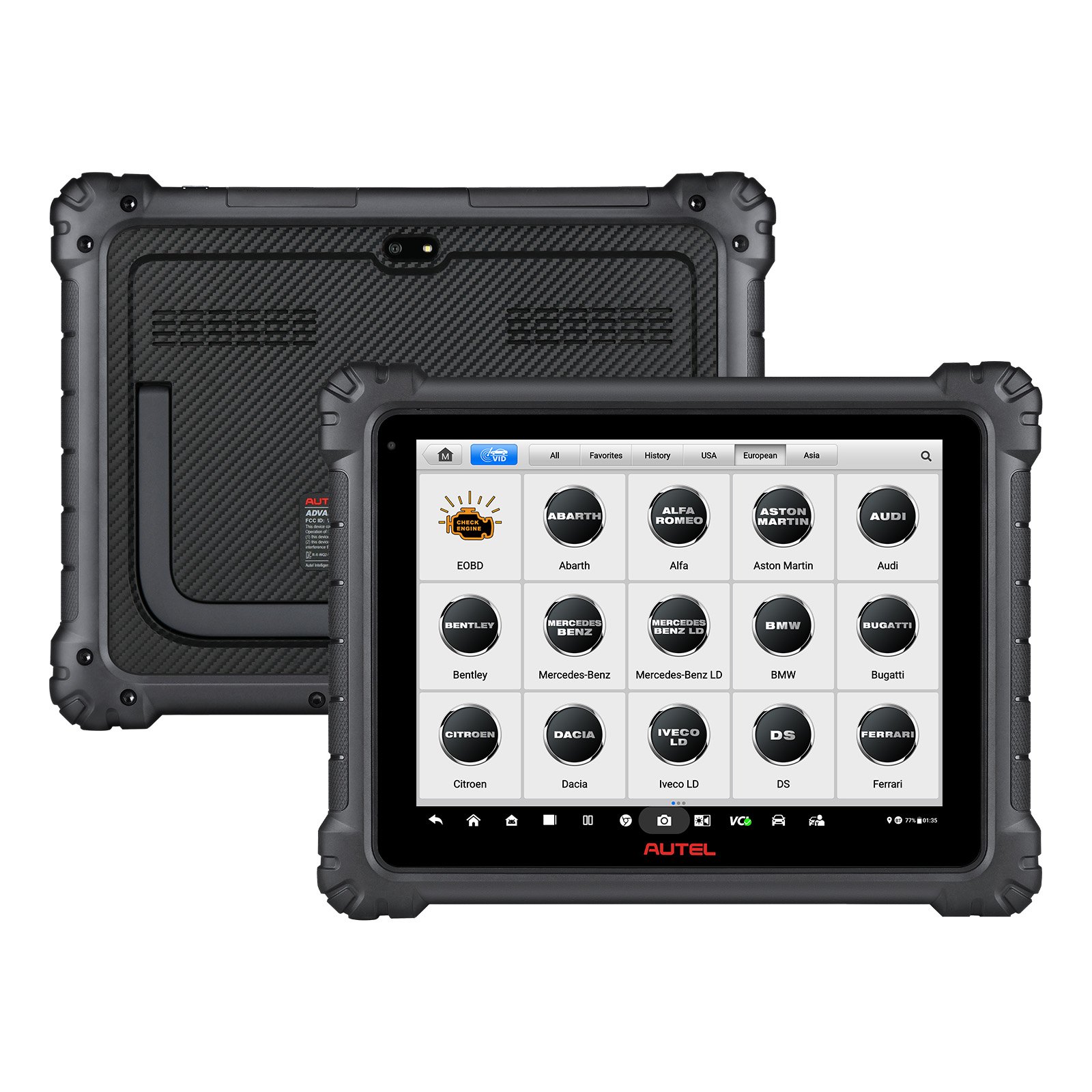

• OE-level coverage for 80+ US domestic, Asian, and European vehicles including supercars
• Exceptional OE-level functions from OBDII diagnostics to ECU coding and programming
• Automatic system and software updates with real-time push notifications
• Interactive data logging with direct Autel support contact
• Multitasking workshop management for data files, customer info, and vehicle records
• Cloud data manager for customer and vehicle records, scanner data, and technician notes
• OE-level Topology module tree
• 2 years of free updates online. Check the one year update service after 2 years
• Supports Australia Holden and Ford

Functions

• Full-system diagnostics with active tests
• All-systems diagnostics as Ultra, MS919, and MS909
• Bidirectional active tests on systems, subsystems, and components: ABS sensitivity and function, motor pump integrity, fuel pumps, wipers, headlamps, windows, doors, sunroof, and more
• Advanced ECU programming and ECU coding

J2534 programming

The included J2534 ECU programming device with BMW Ethernet cable for F-series coding and programming replaces software and firmware in ECUs, programs new Benz and BMW ECUs, and fixes software-controlled drivability and emission issues with the latest computer software.

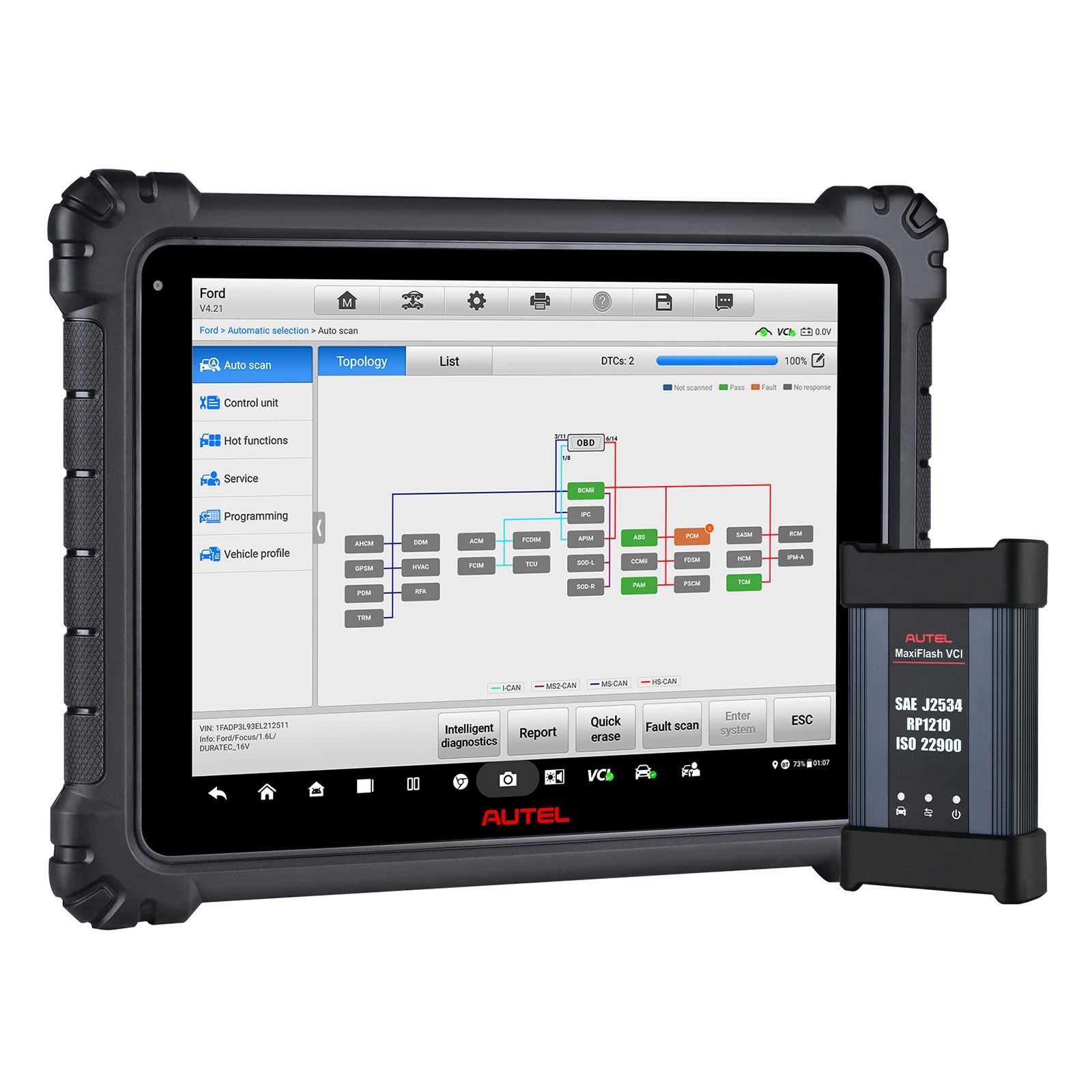

Topology mapping

Color-coded module tree with system counts, scanned systems, and scan results. Makes: BMW, Ford, Volkswagen, Audi, GM, Chrysler, Nissan, Honda, Toyota and Lexus, Jaguar and Land Rover, Mercedes-Benz, Hyundai, Kia, and Volvo. Topology is not universal. Send the VIN before ordering.

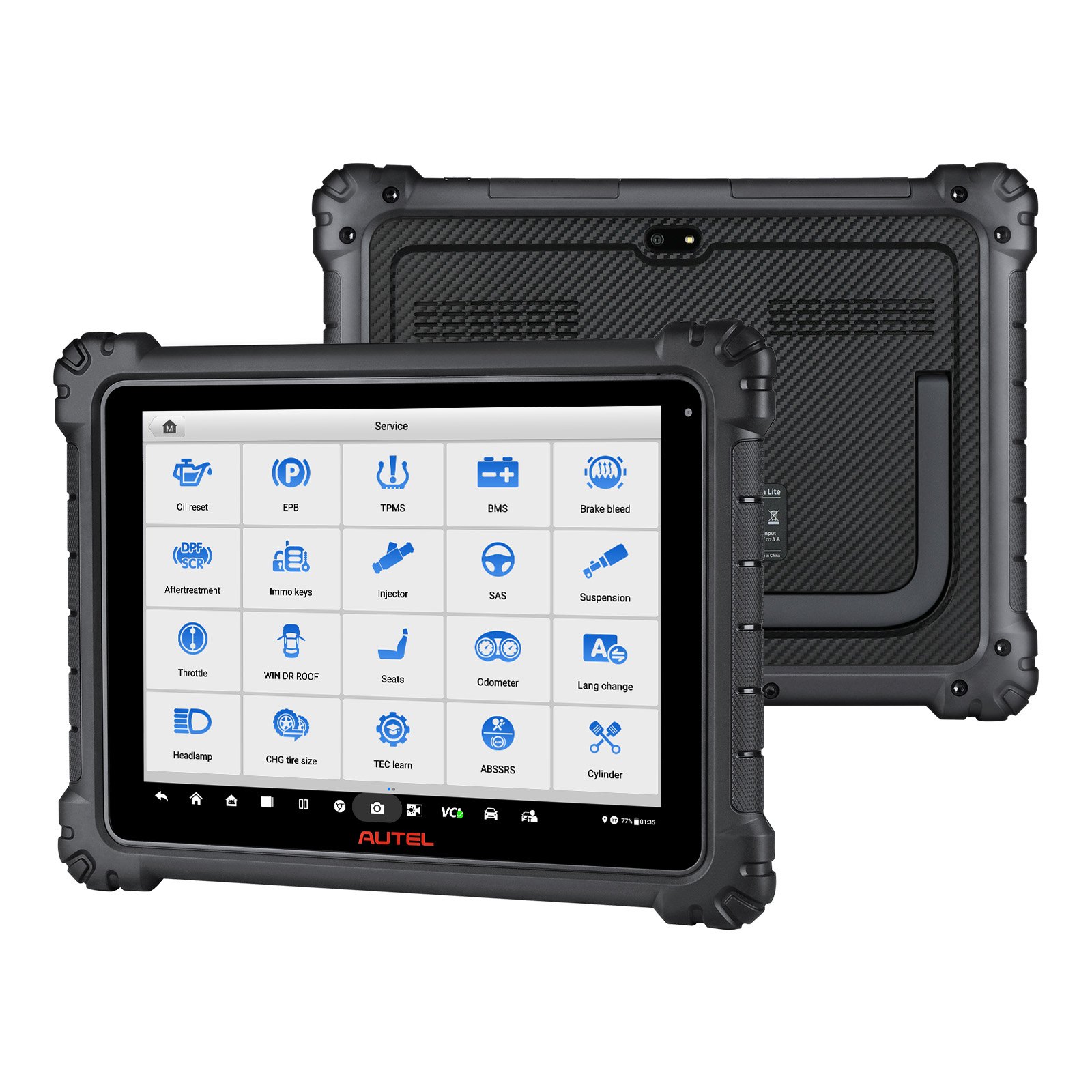

Services

Regular maintenance on modern cars needs a diagnostic system. Even simple procedures need a scanner.

• Oil reset: oil change calculator in engine and automatic transmission
• EPB: brake pads on electric parking brake vehicles
• SAS: sensor adaptation to steering wheel angular position
• DPF: diesel particulate filter regeneration
• Brake bleed: ABS brake bleeding
• TPMS: battery registration and reset
• Seat calibration: memory in replaced or repaired seats
• Airbag reset: airbag data reset clearing the collision fault indicator
• A and F reset: air and fuel ratio parameters
• Gearbox reset: self-learning for shift quality
• Suspension reset: body height sensor level calibration
• BMS: battery registration and reset

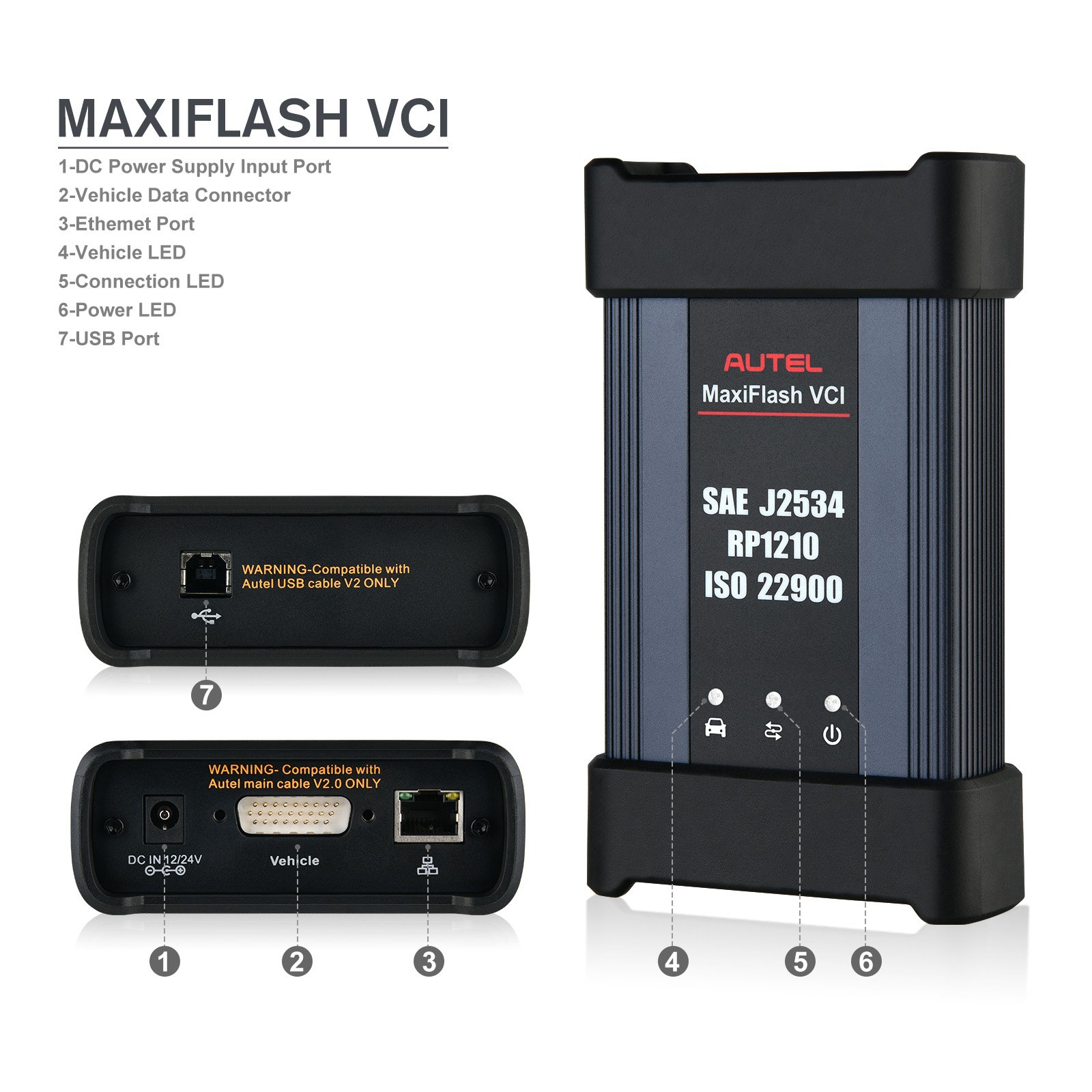

• Advanced MaxiFlash VCI

Protocols

• OE protocols: D-PDU, J2534, and RP1210
• CAN FD and DoIP up to 4.05Mbit, 14 times faster than CAN2.0A and B
• More models: GM from the second half of 2009, Volvo after 2018, Land Rover and Jaguar after 2017, and BMW F and G chassis
• CAN FD and DoIP are not universal. CAN FD fits mostly post-2019 GM. DoIP fits post-2018 Volvo, post-2017 Land Rover and Jaguar, and F and G chassis BMW

Pre-scan and post-scan

1. Auto scan the vehicle. Auto VID identifies the vehicle and lists all systems, codes, and code details
2. Print the pre-scan report with shop and vehicle information
3. Repair the vehicle from an efficient plan
4. Auto scan the repaired vehicle for new faults and remaining DTCs
5. Print the post-scan report proving the pre-scan DTCs are fixed

Ultra over Ultra Lite S

• Connection: Bluetooth MaxiFlash VCI over Bluetooth MaxiFlash VCMI
• Screen: 9.7 inch over 12.9 inch
• Battery: 15000mAh over 18000mAh
• Processor: 2.2GHz plus 1.8GHz octa-core on both
• Memory: 128GB SSD and 4GB RAM over 256GB SSD and 4GB RAM
• Camera: 16MP rear and 16MP front over 16MP rear and 5MP front

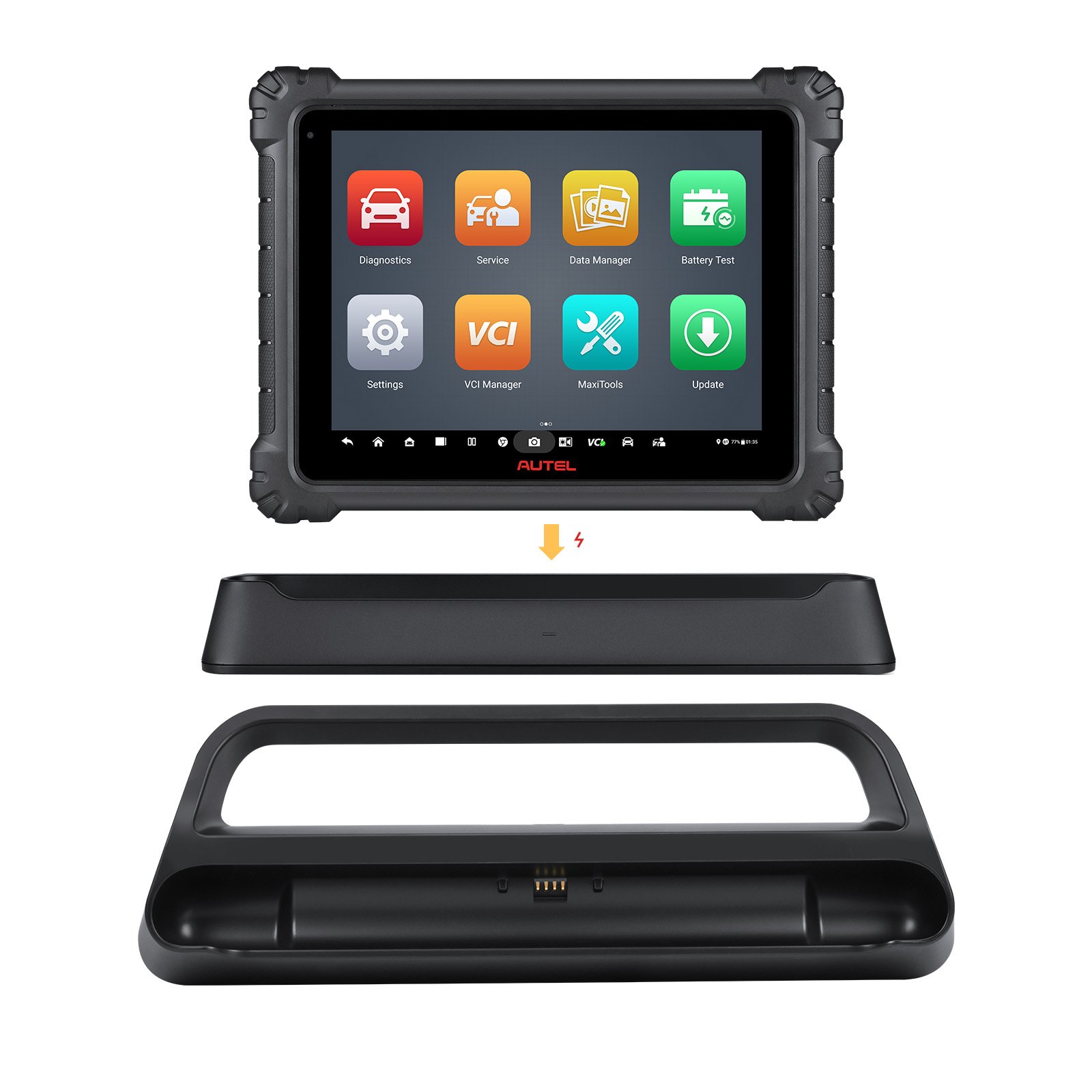

• Docking station: missing over included
• EVDiag box: included on both
• Operating system: Android 10.0 over Android 7.0

Specifications

• Operating system: Android 7.0
• Processor: Samsung Exynos8895V octa-core (2.3GHz quad-core Mongoose plus 1.7GHz quad-core A53)
• Memory: 4GB RAM and 256GB memory
• Display: 12.9 inch TFT-LCD at 2732 by 2048 with capacitive touchscreen
