1set Camper Car Push Lock Cabinet Cam Lock With2Keys For Swift Elldis RV Caravan Boat MotorHome Cabinet Drawer Latch Button Lock

A push button cabinet cam lock in red with two keys, for a caravan, boat, motorhome or RV cabinet drawer. It is listed for Swift and Elddis vans.

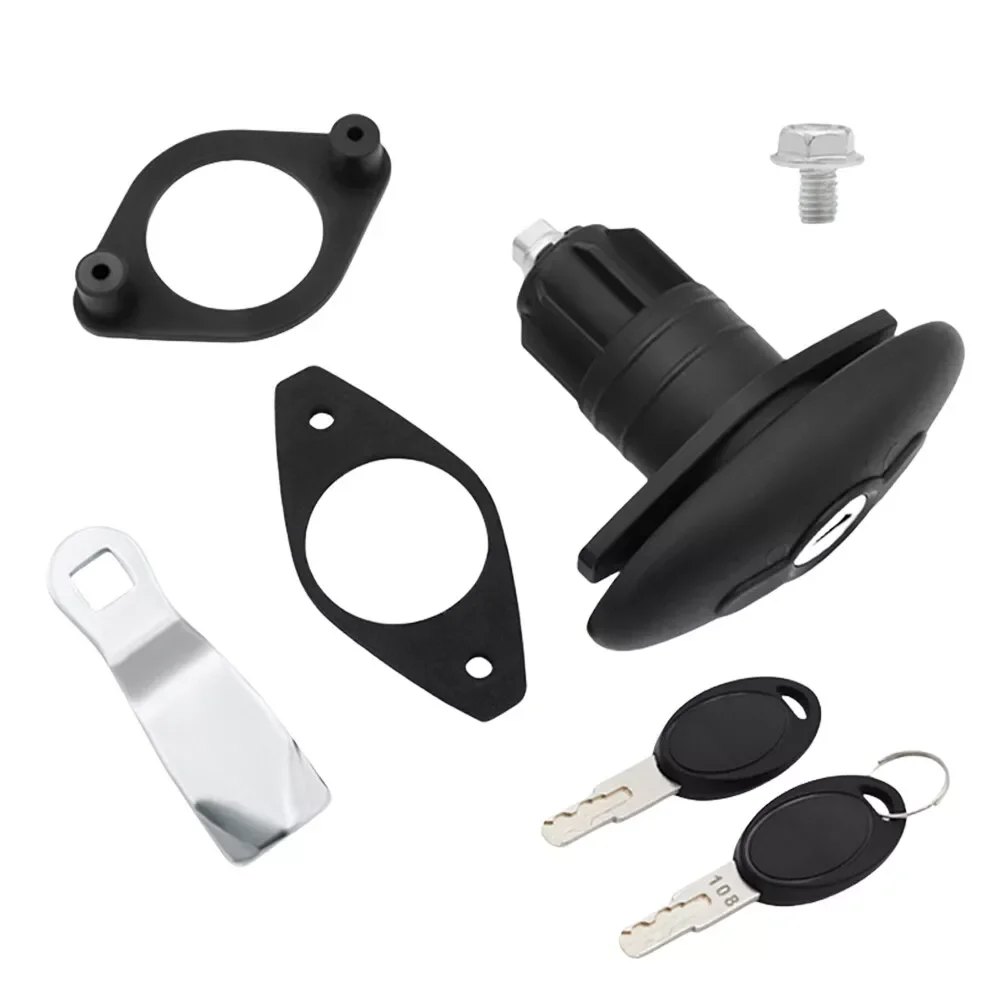

What you get

• 1 x Door Lock
• 2 x Keys
• Internal compression locking catch
• Complete with ZADI barrel and key set
• Easy to fit with backing plate
• Fits doors up to 50mm thick
• If you buy multiple locks we supply them keyed alike!
• This ZADI STS oval compartment lock is common to many mobile vehicles built in the U.K. such as the Swift Autotrail Bessacar elldis and European marks such as Hymer Mobile.

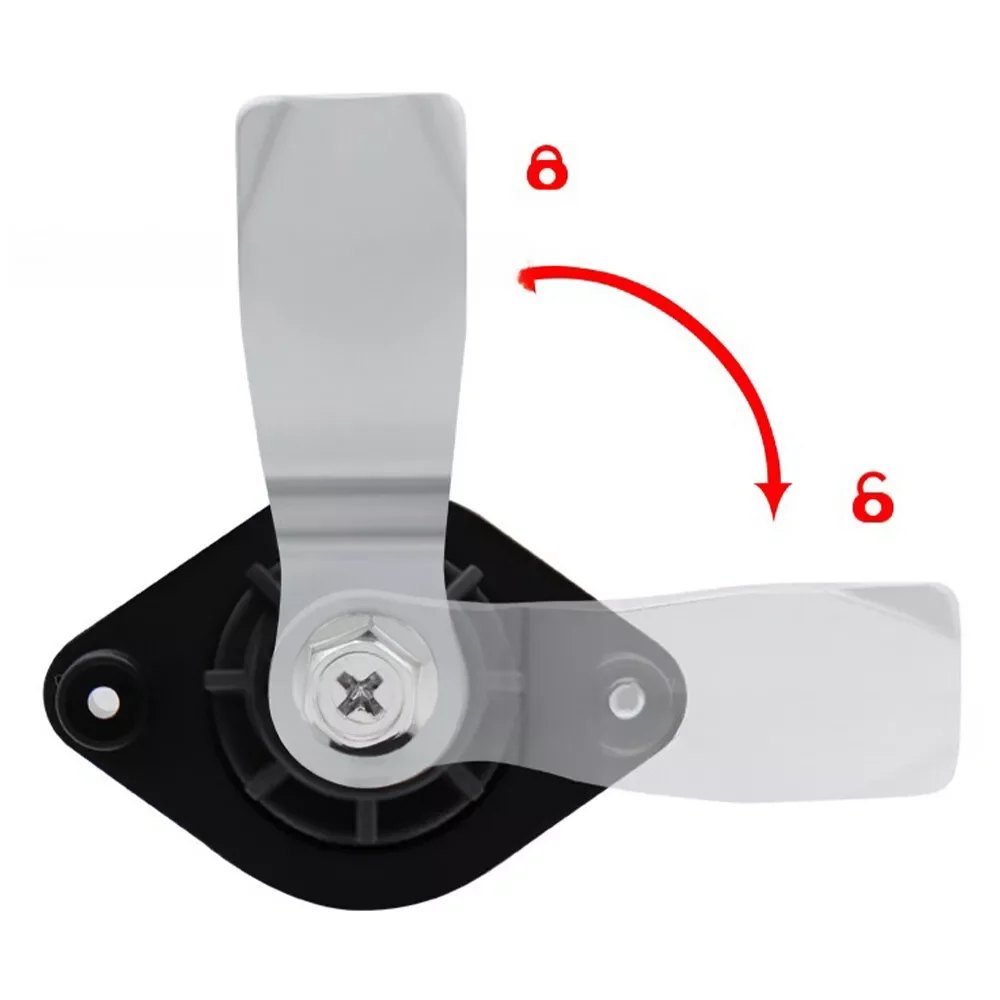

• The Zadi STS lock operates on a 90-degree twist action. It has a compression action that means the door latch turns then pulls the door tight closed (to ensure a snug fit against a door seal.)
• There is a backing plate included with the locking kit which is for optional use depending on the application of your lock. If the lock is being used on a thin metal sheet wall or similar, use the backing plate on the interior side of the wall to hold your screws in place. If the desired use of the lock is on a thick wood type material, the backing plate will not be necessary as the wall material will grasp the screws.
• To operate put the key into the barrel, turn the key and the external handle pops out towards you making it obvious the door is now unlocked. A 1/4 turn on the handle and the door catch is released. To lock the door latch it is simply a case of twisting the locking catch and pushing the handle back flush into the mounting.
• To replace your broken or sticking door you open your existing latch which reveals 2 external screws. Remove these. Undo the bolt on the rear of the Lock holding the catch on and remove the entire unit. To refit the new lock pass it through the door hole taking care to keep the supplied neoprene gasket in place. Using suitable screws (not supplied) secure the barrel in place, then fit the rear latch washer and finally the bolt and tighten. That's it youre done!

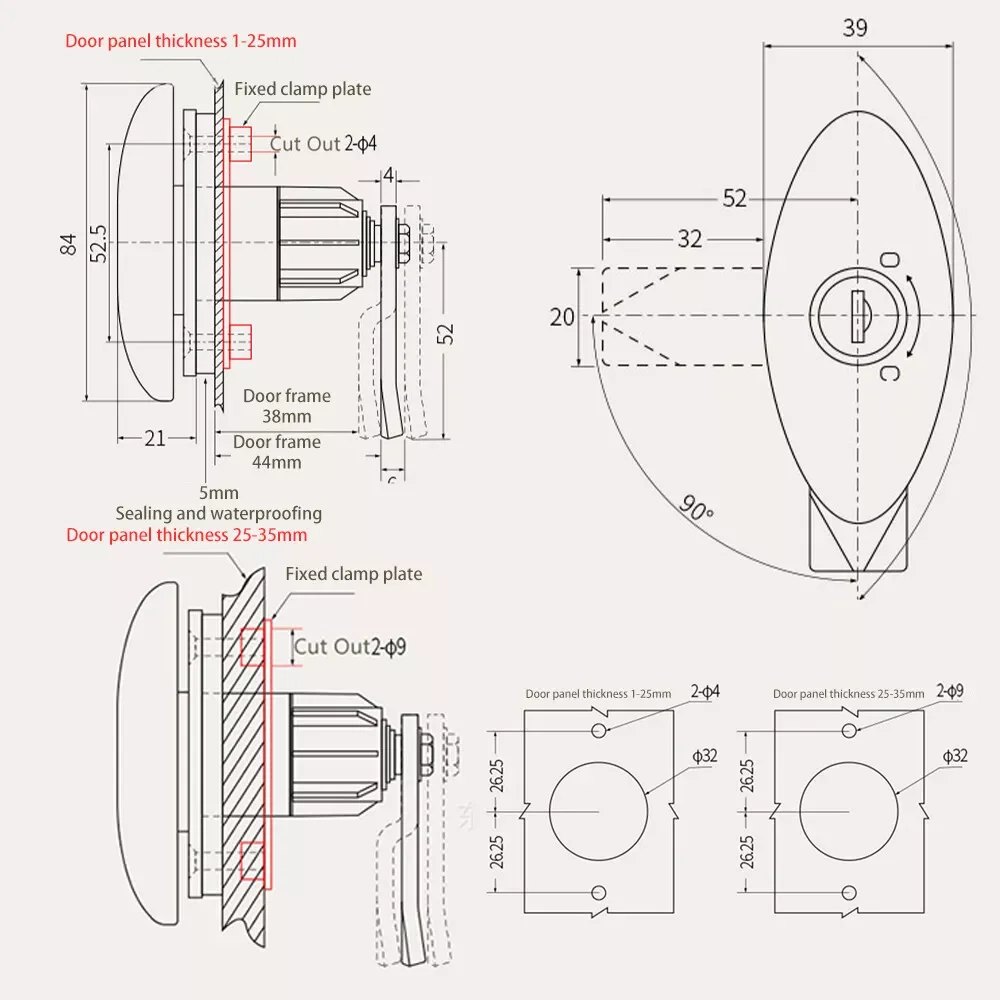

• The barrel as configured here has a gap of 50mm between the face of the outer latch and the face of the locking catch. These locks are often fitted on doors with a thickness less than 50mm because the manufacturers pack out or bend the internal catch plate to fit the locks reach
• The Door Lock is suitable for RVs, travel trailers, cargo haulers, campers, yachts, ships, caravans, etc.
