Original Diatronic Pluto JLR Full Package with COMET JLR for Land Rover and Jaguar 2017-2025 (Coding, Programming, Key Learning, DoIP)

The Original Diatronic Pluto JLR Full Package with COMET JLR covers Land Rover and Jaguar coding, programming, and key learning. Pluto JLR covers 2017-2025 DoIP models. COMET JLR covers 2010-2018 models and replaces SDD and numbers: XN-SP560 and XN-SP602.

Versions

Four versions are available at different prices: Pluto one year subscription, COMET JLR, Diatronic Pluto JLR full package, and the Pluto plus COMET bundle package shown here.

April 2025 update

Updated 2025 Premium 2023-2025 database is purchased separately for 350 USD. Flash modules and change CCF until 2025. For 2024 and 2025 models, flash files are not available, but all coding and key learning work.

Package contents

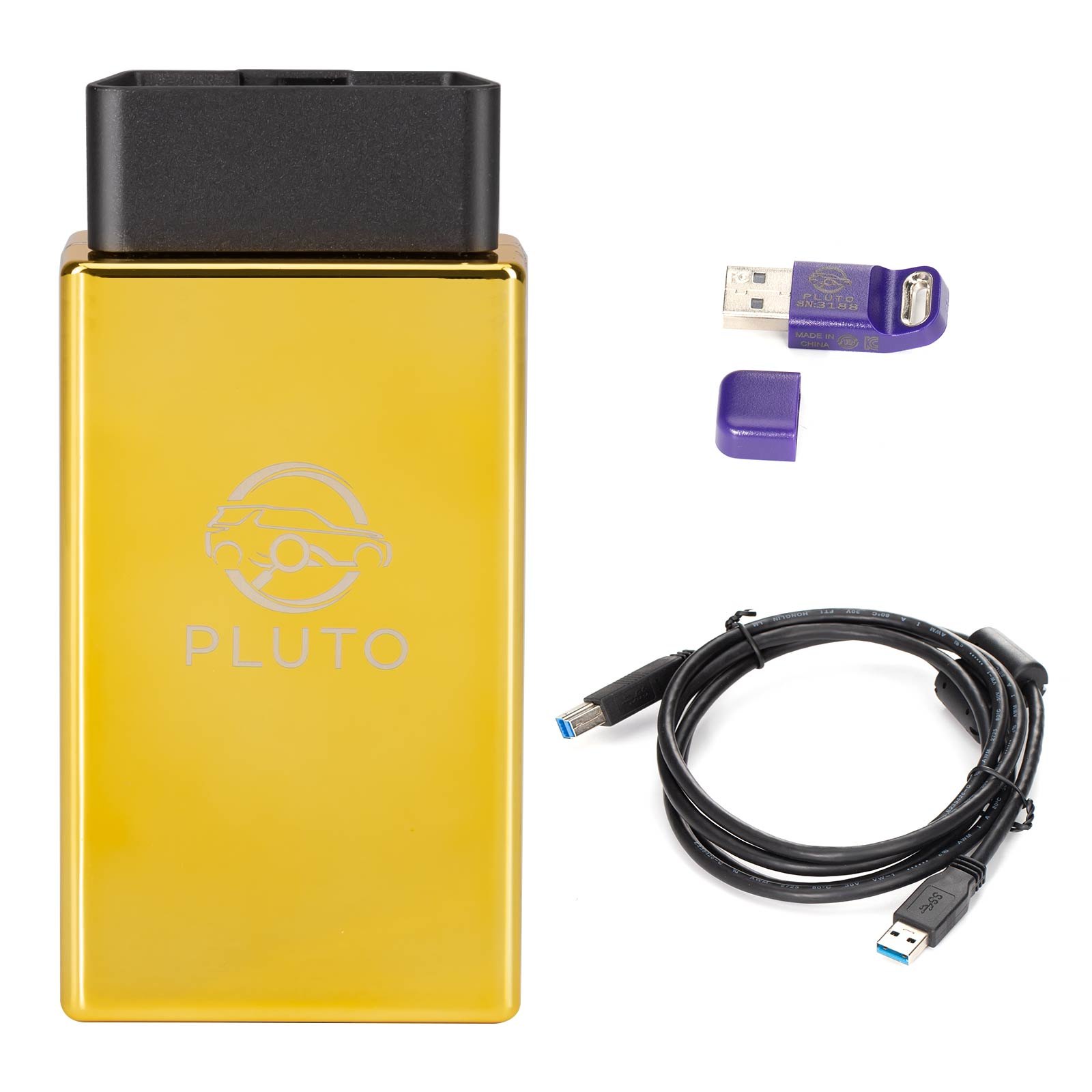

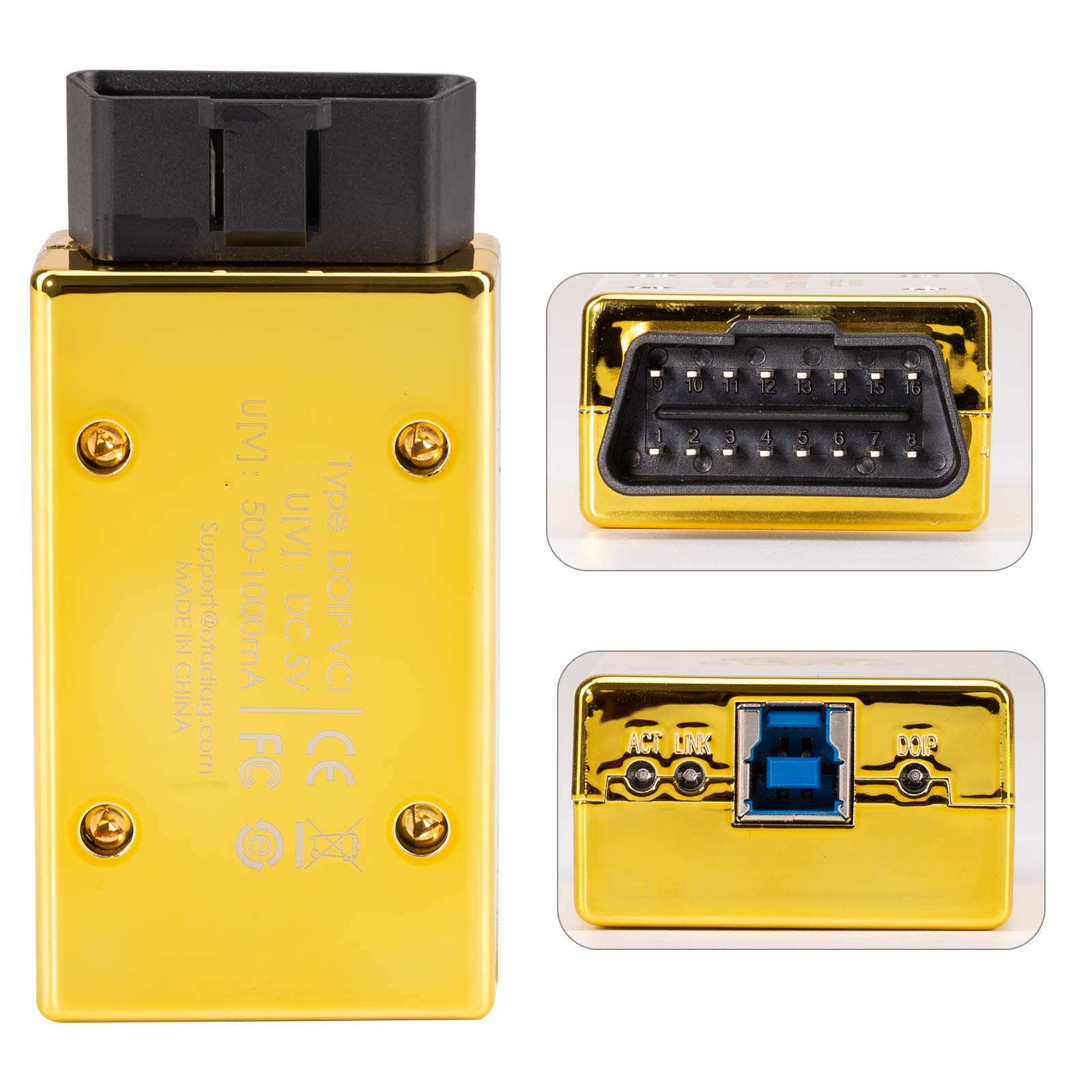

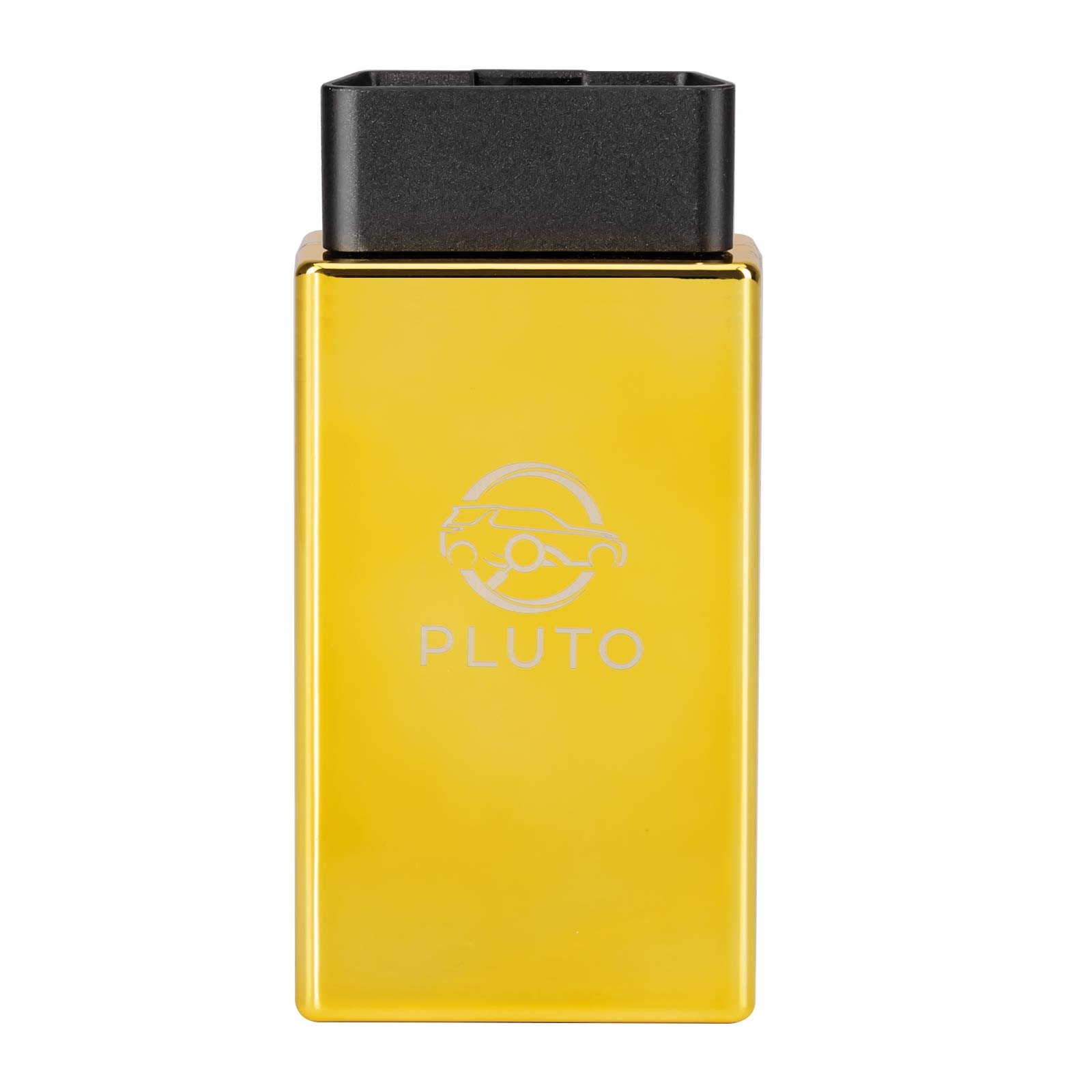

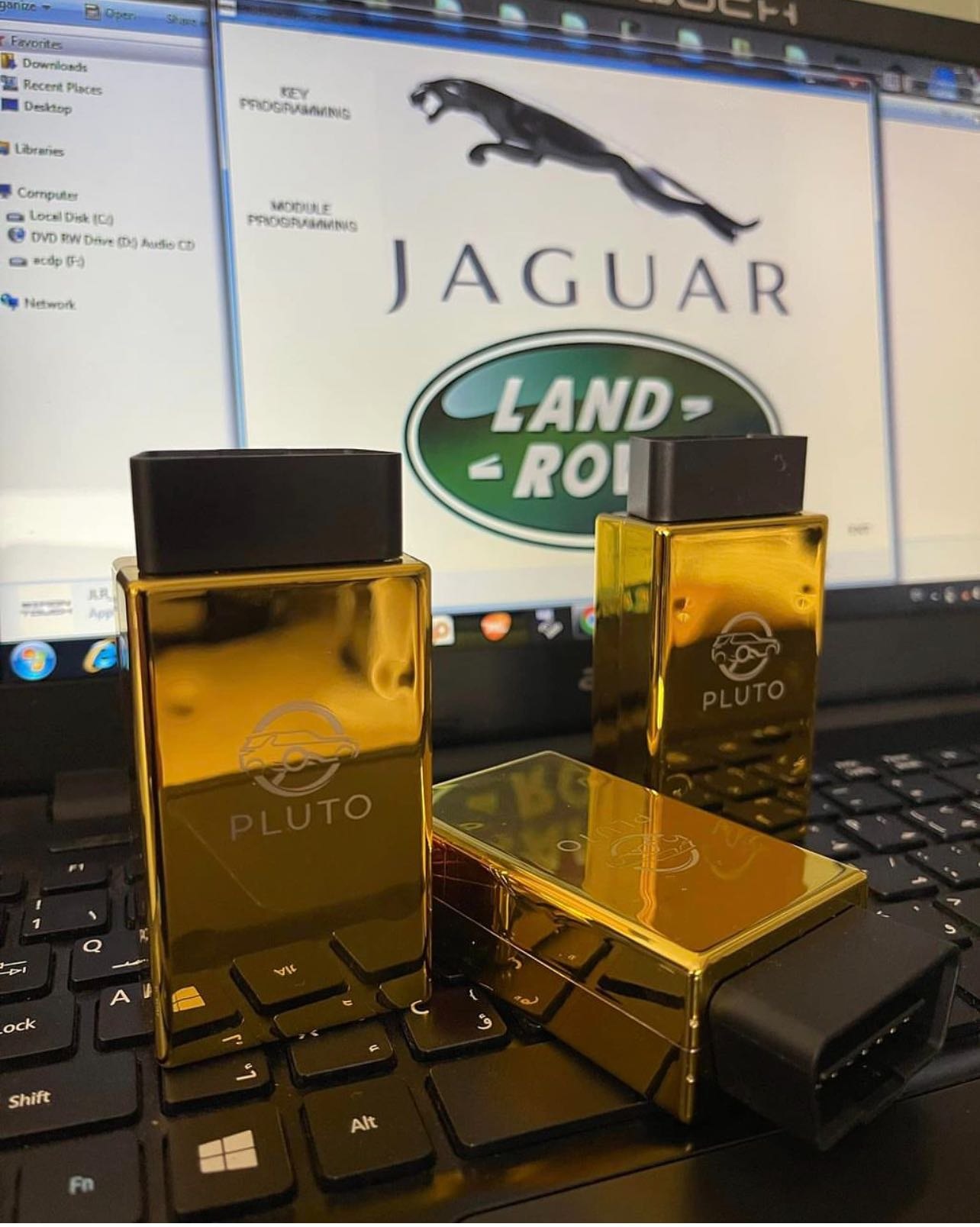

• Pluto JLR OBDII VCI
• Pluto JLR USB security key dongle
• Pluto software license with activation for one year, including free software updates for the same period
• Hardware limited warranty for one year
• Free gift: JLR SDD software
• Free gift: online and phone support for one year

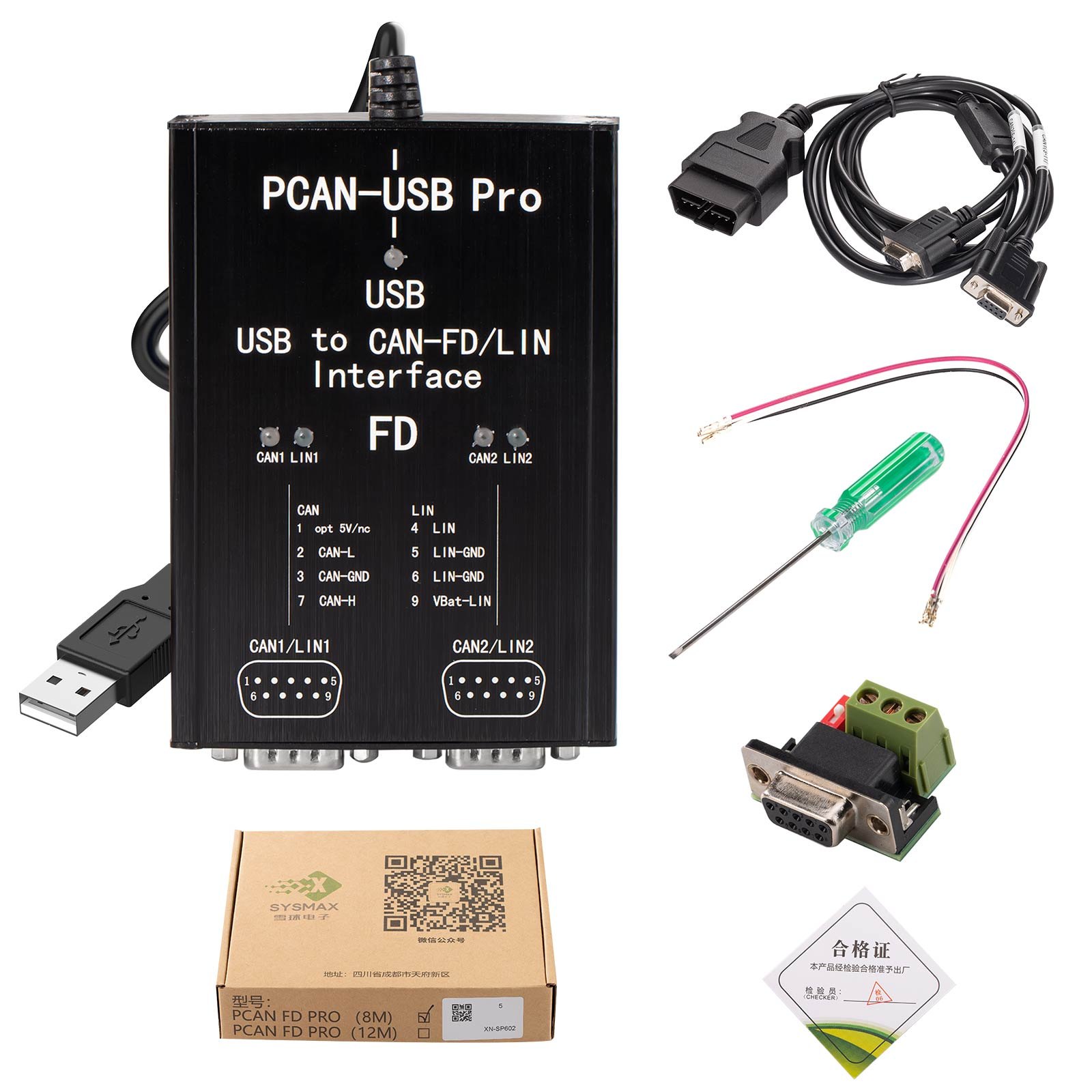

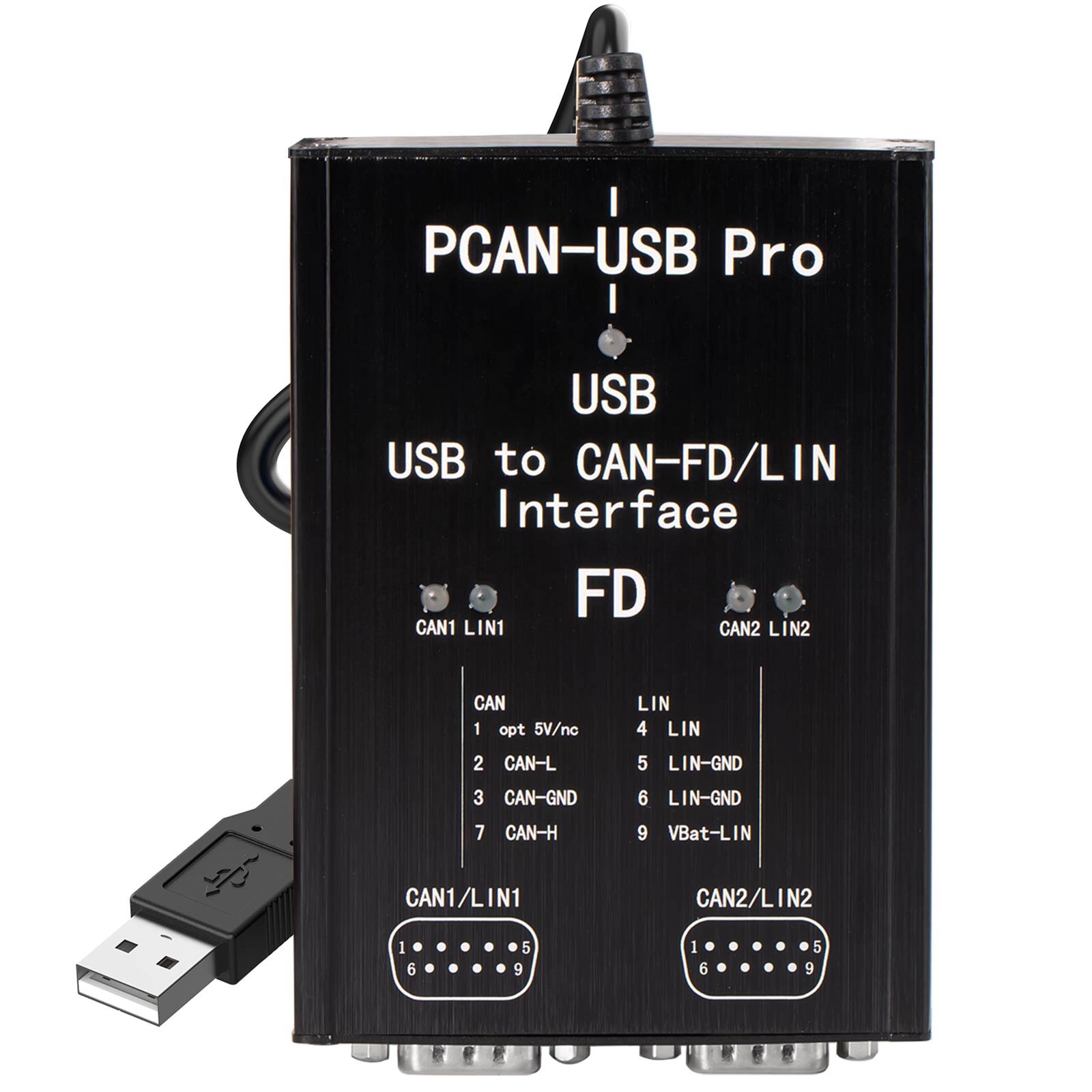

• 1 set COMET JLR for Jaguar Land Rover

Pluto JLR functions

• Coding all modules
• Online flashing, individual flashing, and ECU each module alone and select the version to update to
• Vehicle services
• Read and erase DTC
• Read vehicle info (typology)
• Key learn in 1 minute
• Immobilization and ECU reset

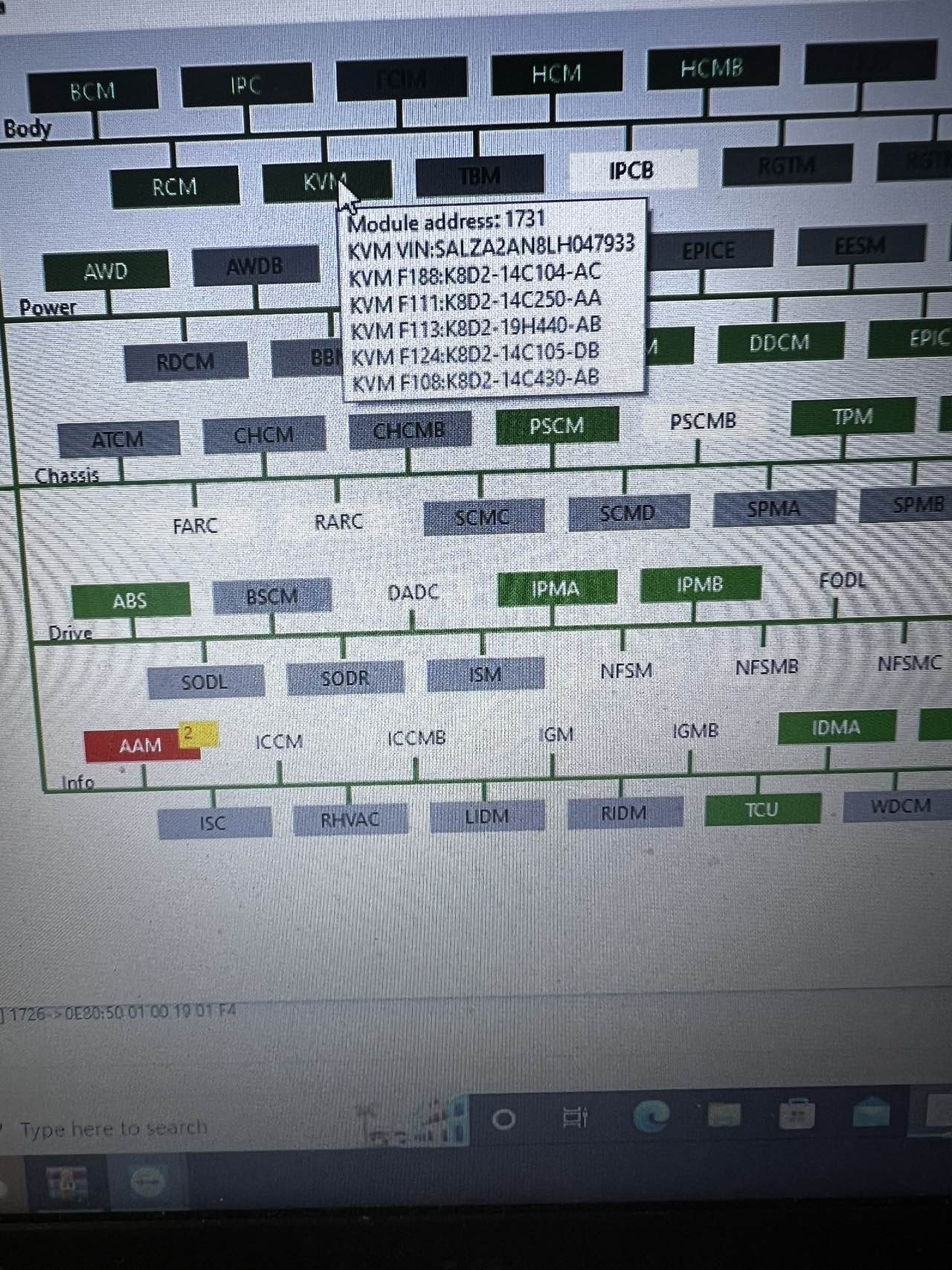

• Replace KVM and BCM
• CCF change and VIN write

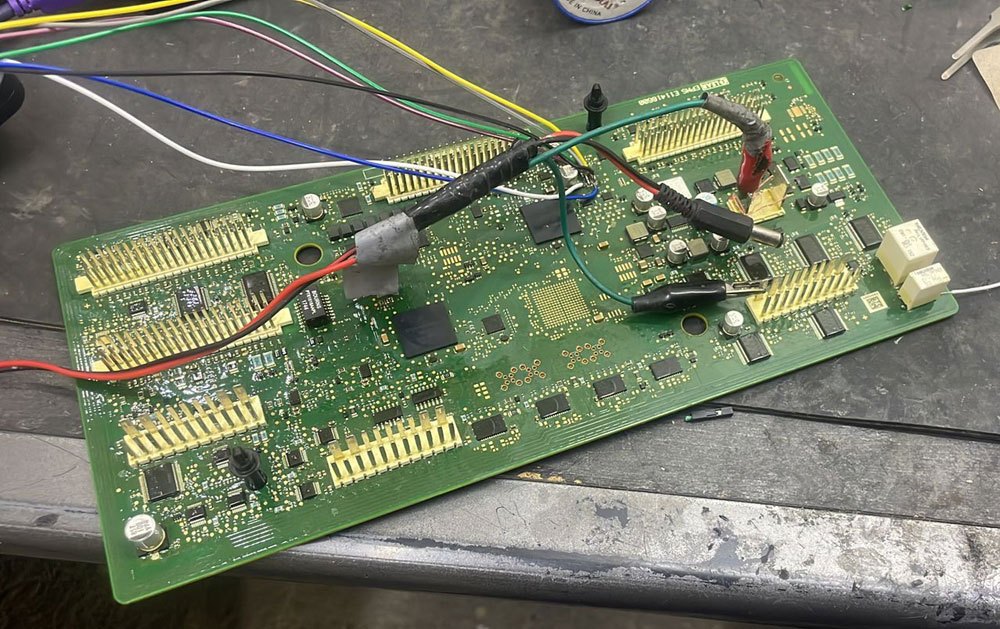

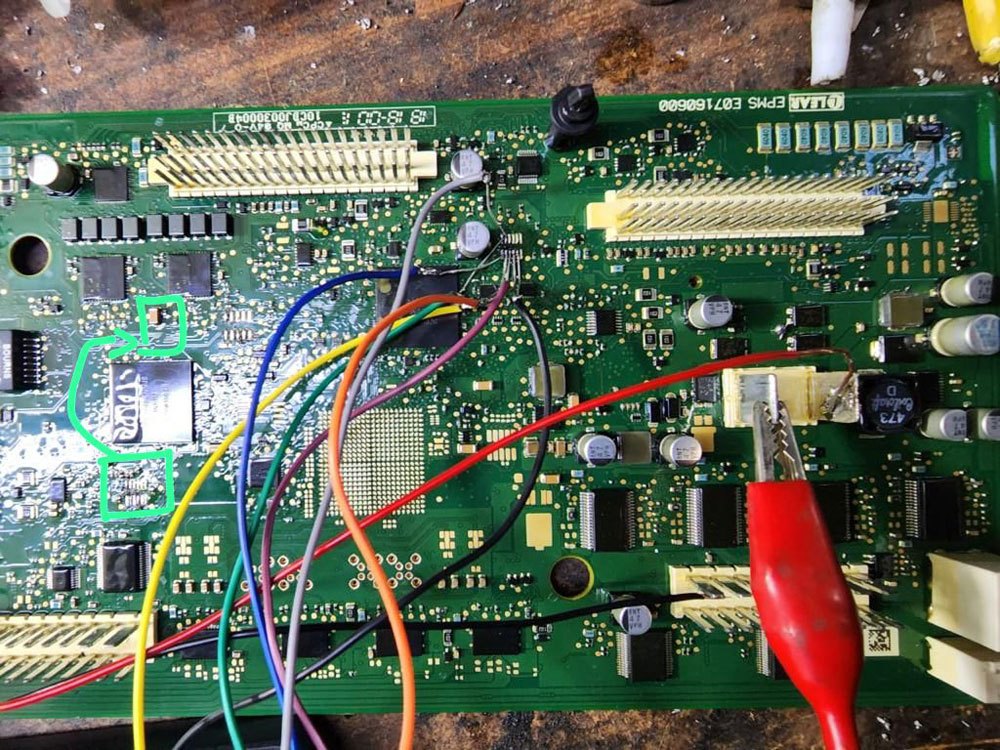

• Unlocking locked BCM with working key
• Reprogram used BCM 2019-2020 with no need to renew
• Retrofit with CCF functions and CCF learning
• Reprogram used modules instead of buying new ones
• Reset BCM and code replacement modules after immobilization work

Online CCF

For Jaguar Land Rover vehicles, select the function after connecting to OBD and the tool downloads what it needs, similar to a maintenance reset. No byte changes are needed. A CCF data intake and IMC configuration learn completes without repeat flashing failures. Flash files are provided during support. If the BCM is locked, unlock it first and then reprogram. The same applies to KVM. PCM needs no unlocking.

EVA1 and EVA2 identification

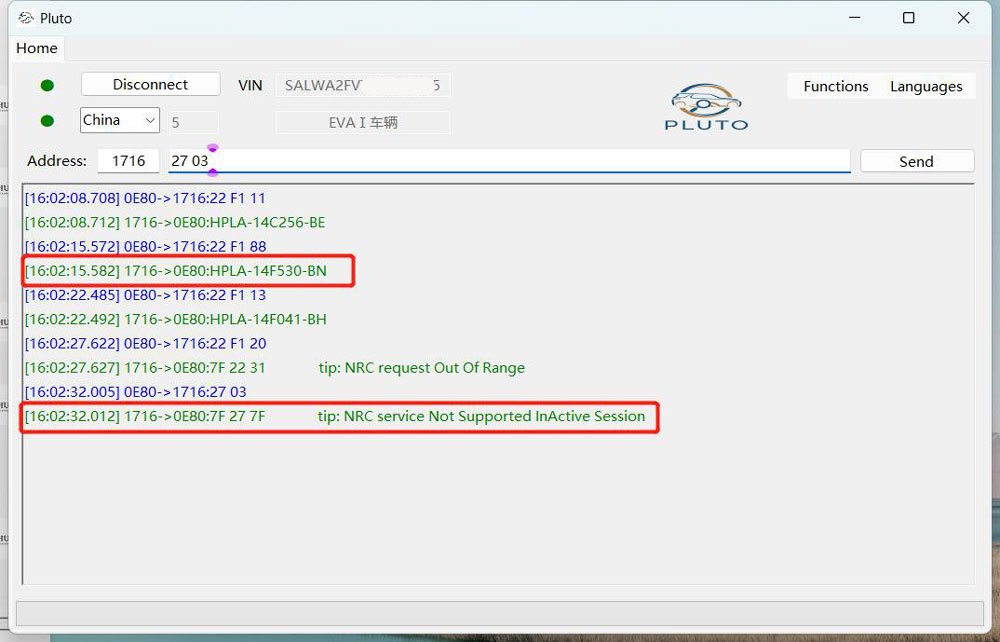

Check the entertainment system: NGI system means EVA1 vehicle, Pivi-Pro means EVA2. HPLA and JPLA BCM units are fitted in EVA1 vehicles. L8B2 and M8E2 units are in EVA2 vehicles. The tool is ready for new DoIP and EVA2 vehicles and covers most functions of JLR cars from 2017 to date.

Terms

• Software annual fee 500 USD per year. The software must be renewed after expiry
• Send the serial number on the dongle after receipt so the software is customized for you
• Language: English
• No IP limitation
• One-year hardware warranty, no returns or exchanges
• Product questions go to the official website technology team directly
• Cannot ship to Israel

Orders leave the warehouse within one business day. Delivery then takes 7 to 20 days. Orders over $150 ship free.

Not right for you? You have 30 days from delivery, with no restocking fee. See the full returns policy.
